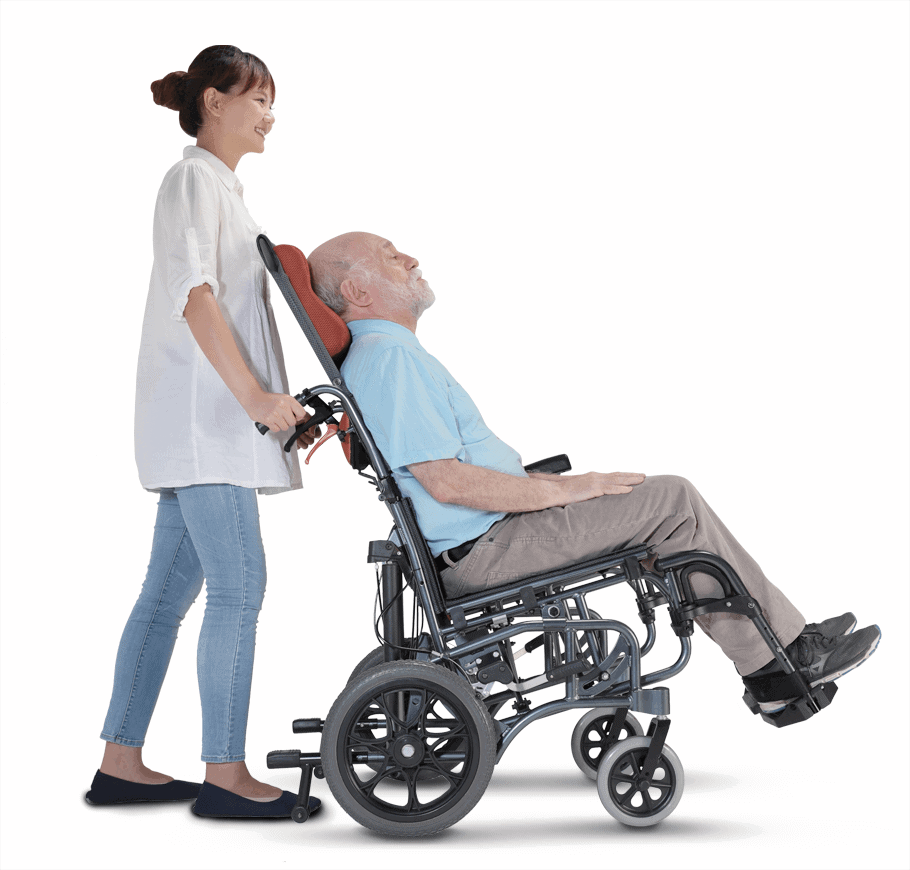

The VIP 515 (KM-1520.3T) is not just a lightweight folding wheelchair, it is a revolutionary designed tilt-in-space wheelchair (with a tilt range of 0 to 35 degrees). Carried by exclusive gas struts using an intelligent center-of-gravity weight shifting technology, it maintains stability while the chair is tilted.
| Product Model | VIP 515 (KM-1520.3T) | |||
| Nominal Seat Width (inch) | 16 | 18 | 16 | 18 |
| Caster x Rear wheel size (in) | 7 x 14 | 7 x 20 | ||
| Maximum user weight (kg) | 115 | |||
| Overall length with legrest (mm) | 1070 | 1070 | 1070 | 1070 |
| Overall width (mm) | 635 | 680 | 660 | 710 |
| Overall height (mm) | 955 / 1325 (with headrest) | 955 / 1330 (with headrest) | ||
| Folded length (mm) | 725 | 730 | 790 | 790 |
| Folded width (mm) | 350 | 350 | 375 | 375 |
| Folded height (mm) | 760 | 760 | 760 | 760 |
| Total mass (kg) | 18.9 | 19.3 | 20.0 | 20.3 |
| Mass of the heaviest part (kg) | 15.1 | 15.3 | 16.2 | 16.4 |
| Handrim diameter (mm) | N/A | N/A | 430 | 430 |
| Horizontal location of axle (mm) | 6 | 6 | 6 | 6 |
| Minimum turning radius (mm) | 835 | 845 | 860 | 870 |
| Minimum turning radius without user (mm) | 815 | 825 | 820 | 835 |
| Pivot width (mm) | 1180 | 1200 | 1210 | 1230 |
| Static stability downhill (X°) | 16 | N/A | ||
| Static stability uphill (X°) | 16 | N/A | ||
| Static stability uphill with anti-tippers (X°) | 20 | N/A | ||
| Static stability sideways (X°) | 13 | N/A | ||
| Seat plane angle (X°) | 1 ~ 37 | |||
| Effective seat depth (mm) | 420 | 420 | 420 | 420 |
| Nominal seat depth (mm) | 415 | 415 | 415 | 415 |
| Effective seat width (mm) | 475 | 520 | 475 | 520 |
| Seat surface height at front edge (mm) | 490 | 485 | 490 | 485 |
| Backrest angle (X°) | 13 | |||
| Seat to backrest angle (X°) | 94 | |||
| Backrest height (mm) | 460 | 460 | 460 | 460 |
| Headrest height above seat (mm) | 600 ~ 740 | 600 ~ 740 | 600 ~ 740 | 600 ~ 740 |
| Leg to seat angle (X°) | 114 | |||
| Footrest to seat distance (mm) | 405 ~ 480 | 405 ~ 480 | 405 ~ 480 | 405 ~ 480 |

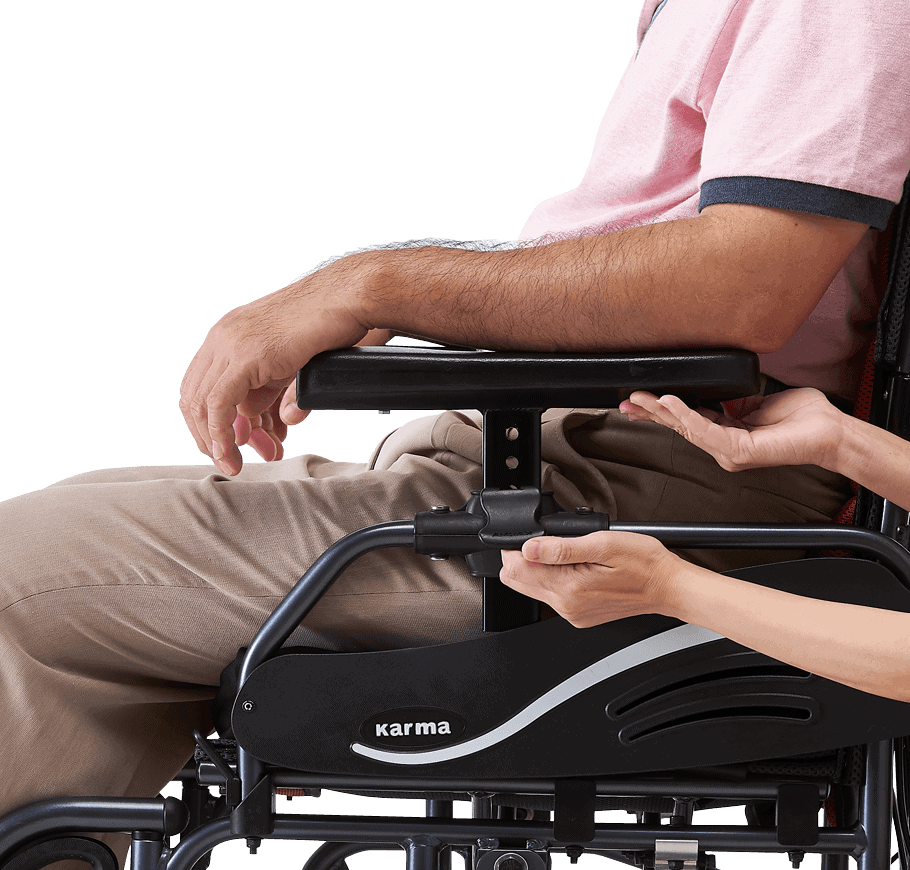

| Armrest to seat distance (mm) | 240 ~ 320 | 240 ~ 320 | 240 ~ 320 | 240 ~ 320 |
| Front location of armrest structure (mm) | 370 | 370 | 370 | 370 |
Remark :
* The actual product specifications differ from the data in the table by ±1 cm ±0.5 kg.
* The actual product specifications may vary according to different configurations.
* KARMAreserves the right to modify information herein without further notice.
