Frame Colors
Specification
| Product Model | KM-2500 | KM-2500L | ||
| Nominal seat width (mm/in)* | 420 / 16 | 470 / 18 | 420 / 16 | 470 / 18 |
| Nominal seat depth (mm/in)** | 400 / 16 | 400 / 16 | 400 / 16 | 400 / 16 |
| Front caster / Rear wheel size (in) | 6 / 14 | 6 / 14 | 6 / 20 | 6 / 20 |
| Backrest height (mm) | 420 | 420 | 420 | 420 |
| Headrest height above seat (mm) | N/A | N/A | N/A | N/A |
| Armrest to seat distance (mm) | 225 | 225 | 225 | 225 |
| Front location of armrest structure (mm) | 280 | 280 | 280 | 280 |
| Seat surface height at front edge (mm) | 450 | 450 | 450 | 450 |

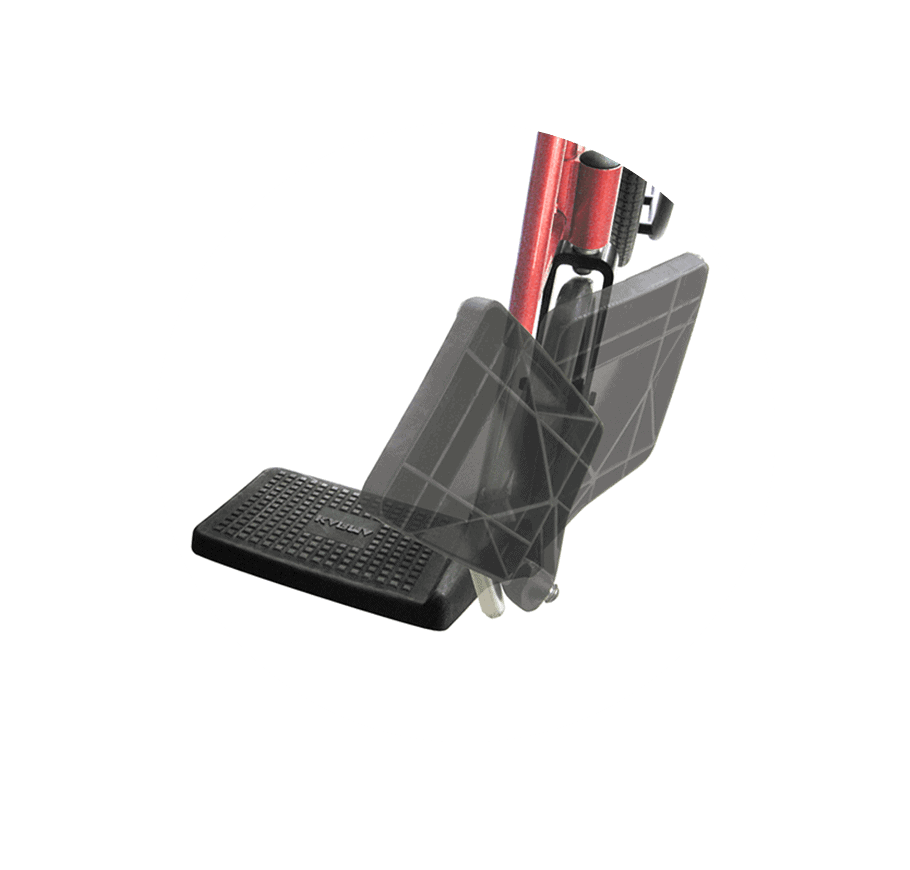

| Footrest to seat distance (mm) | 310 ~ 410 | 310 ~ 410 | 310 ~ 410 | 310 ~ 410 |
| Effective seat width (mm) | 420 | 470 | 420 | 470 |
| Effective seat depth (mm) | 415 | 415 | 415 | 415 |
| Seat plane angle (X°) | 9 | 9 | 9 | 9 |
| Backrest angle (X°) | 11 | 11 | 11 | 11 |
| Seat to backrest angle (X°) | 92 | 92 | 92 | 92 |
| Leg to seat angle (X°) | 101 | 101 | 101 | 101 |
| Overall length with legrest (mm) | 885 ~ 915 | 885 ~ 915 | 900 ~ 930 | 900 ~ 930 |
| Overall width (mm) | 550 | 600 | 575 | 625 |
| Overall height (mm) | 855 | 855 | 855 | 855 |
| Folded length (mm) | 740 | 740 | 790 | 790 |
| Folded width (mm) | 250 | 250 | 285 | 285 |
| Folded height (mm) | 680 | 680 | 705 | 705 |
| Total mass (kg) | 11.2 | 11.3 | 12.2 | 12.3 |
| Mass of the heaviest part (kg) | 10.7 | 10.8 | 11.7 | 11.8 |
| Maximum user weight (kg) | 100 | 100 | 100 | 100 |
| Minimum turning radius (mm) | 700 | 700 | 730 | 730 |
| Minimum turning radius without user (mm) | 640 | 640 | 670 | 670 |
| Pivot width (mm) | 1280 | 1280 | 1280 | 1280 |
| Static stability downhill (X°) | 10 | 10 | 10 | 10 |
| Static stability uphill (X°) | 10 | 10 | 10 | 10 |
| Static stability sideways (X°) | 10 | 10 | 10 | 10 |
| Handrim diameter (mm) | N/A | N/A | 430 | 430 |
| Horizontal location of axle (mm) | 30 | 30 | 20 | 20 |
Manual ver.18
Remark :
* Nominal seat width is measured the width of seat cushion at 120mm in front of the backrest. This value is mainly used in the product ordering process.
** Nominal seat depth is measured from the front end of the seat cushion to the back cushion. This value is mainly used in the product ordering process.
– The actual product specifications differ from the data in the table by ±1 cm ±0.5 kg.
– The actual product specifications may vary according to different configurations.
– Karma reserves the right to modify information herein without further notice.
