Frame Colors
Specification
| KM-AT60 | Custom Specification Range | KM-2500 14F | 規格C | 規格D |
| Seat Width (mm) | 380-455 | 18*16 | 18*18 | 16*16 |
| Seat Depth (mm) | 355-505 | 6*14F | 7*14F | 6*14F |
| Caster Size (in) | 5 | 47 | 45 | 40 |

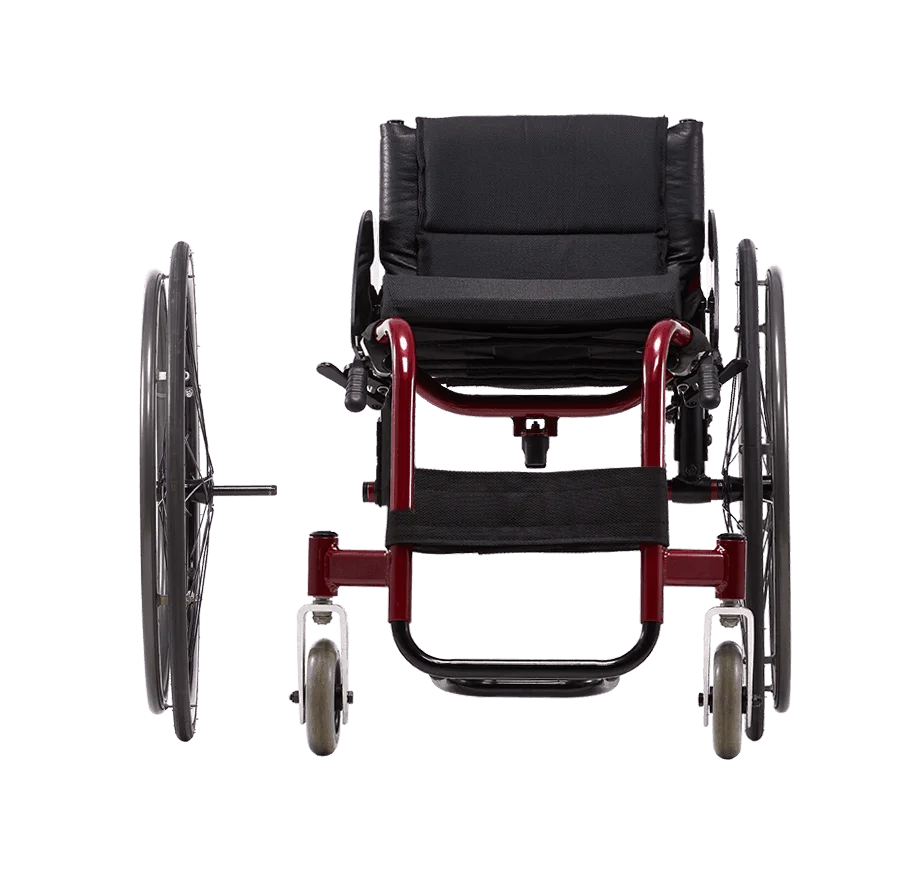

| Rear Wheel Size (in) | 24 Quick Release | 40 | 46 | 41 |
| Seat Height (mm) | 460-580 | 470 | 490 | 465 |
| Backrest Height (mm) | 310-480 | 390 | 540 | 490 |
| Armrest Height (mm) | 150-330 | 210 | 210~270 | 210~270 |
| Calf Length (mm) | 330-480 | 320~430 | 380~480 | 380~480 |
| Backrest Angle (X°) | 0-30 | 11.2 | 22.8 | 22.3 |
| Seat Angle (X°) | 0/3/5 | 89*60*86 | 110*69*103 | 105*64*95 |
| Camber Angle (X°) | 0/3/5/7 | 72*25*68 | 79*38*70 | 79*38*68 |
| Max. User Weight (kg) | 100 | 9 | 0~30 | 0~30 |
| Weight W/O Accessories (kg) | Min. 8 | 9 | 0~35 | 0~35 |
| Total Weight (kg) | Min. 10.5 | 80 | 80 | |
| Overall L x W x H (mm) | Min. 880*620*770 Max. 1030*700*1060 | 1000 | 1150 | 1150 |
| Overall Collapsed Width (mm) | 400 | 107 | 170 | 165 |
Manual ver.06
Remark : Karma reserves the right to modify information herein without further notice.
