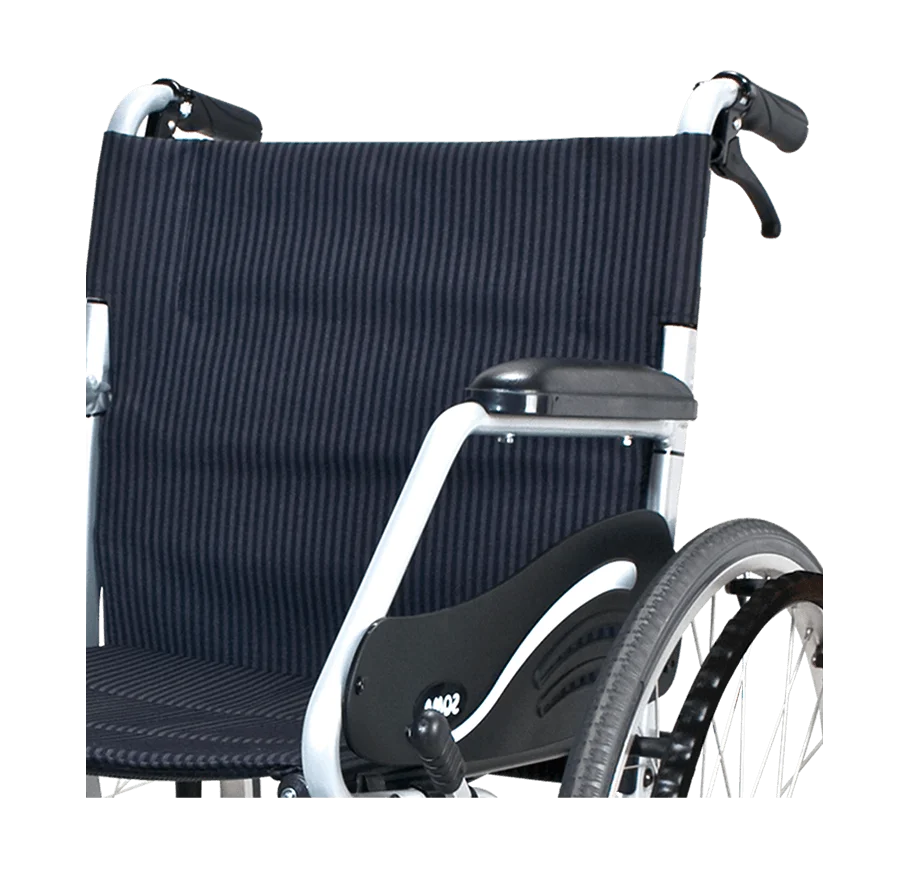

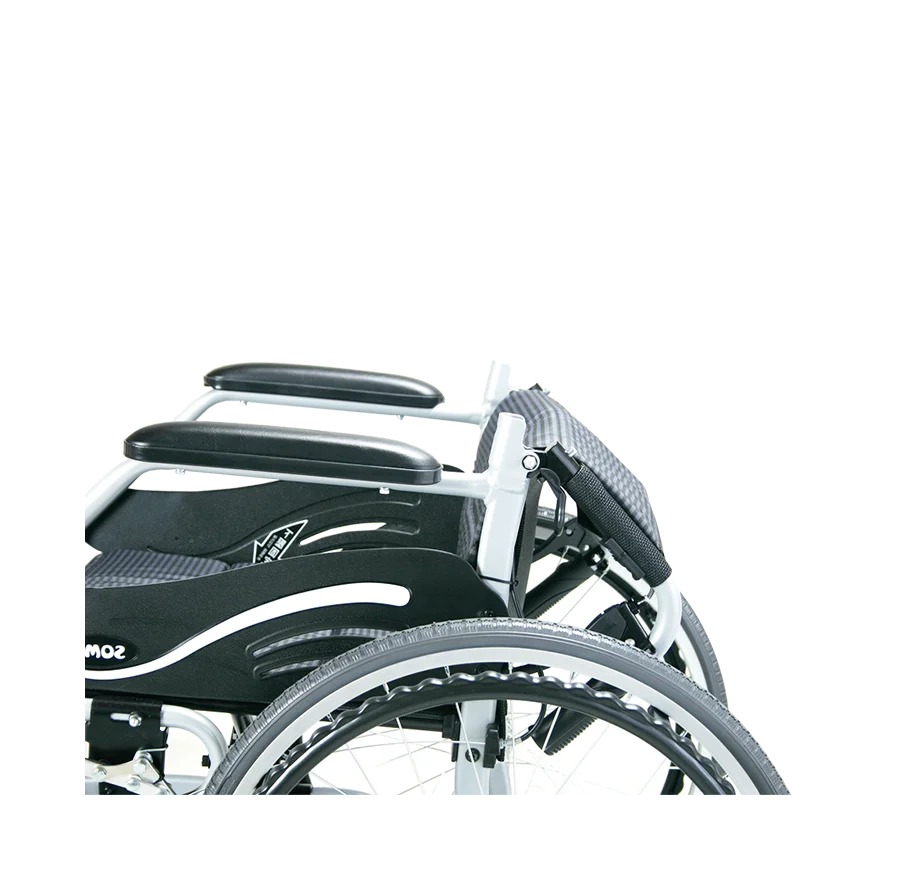

SM-150.3 F16
The SM 150.3 F16 is built using lightweight aluminum and is great options when you need to use a wheelchair more frequently. The wheelchair is crafted from durable frames and are perfect for long term use.
PRODUCT INQUIRY
Frame Colors
Specification
| Product Model | SM-150.3 |
| Nominal seat width (mm) | 420 |
| Caster x Rear wheel size (in) | 7 x 16 |
| Maximum user weight (kg) | 100 |
| Overall length with legrest (mm) | 945 |
| Overall width (mm) | 585 |
| Overall height (mm) | 875 |
| Folded length (mm) | 855 |
| Folded width (mm) | 280 |
| Folded height (mm) | 735 |
| Total mass (kg) | 10.4 |
| Mass of the heaviest part (kg) | 10.4 |
| Handrim diameter (mm) | N/A |
| Horizontal location of axle (mm) | 30 |
| Minimum turning radius (mm) | 745 |
| Minimum turning radius without user (mm) | 685 |
| Pivot width (mm) | 1020 |
| Static stability downhill (X°) | 14 |
| Static stability uphill (X°) | 12 |
| Static stability uphill with anti-tippers (X°) | N/A |
| Static stability sideways (X°) | 16 |
| Seat plane angle (X°) | 5 |
| Effective seat depth (mm) | 470 |
| Nominal seat depth (mm) | 430 |
| Effective seat width (mm) | 460 |
| Seat surface height at front edge (mm) | 500 |
| Backrest angle (X°) | 13 |
| Seat to backrest angle (X°) | 99 |
| Backrest height (mm) | 400 |
| Headrest height above seat (mm) | N/A |
| Leg to seat angle (X°) | 100 |
| Footrest to seat distance (mm) | 395 ~ 420 |
| Armrest to seat distance (mm) | 235 |
| Front location of armrest structure (mm) | 320 |
Manual ver.19
* The actual product specifications differ from the data in the table by ±1 cm ±0.5 kg.
* The actual product specifications may vary according to different configurations.
* Karma reserves the right to modify information herein without further notice.
