Specification

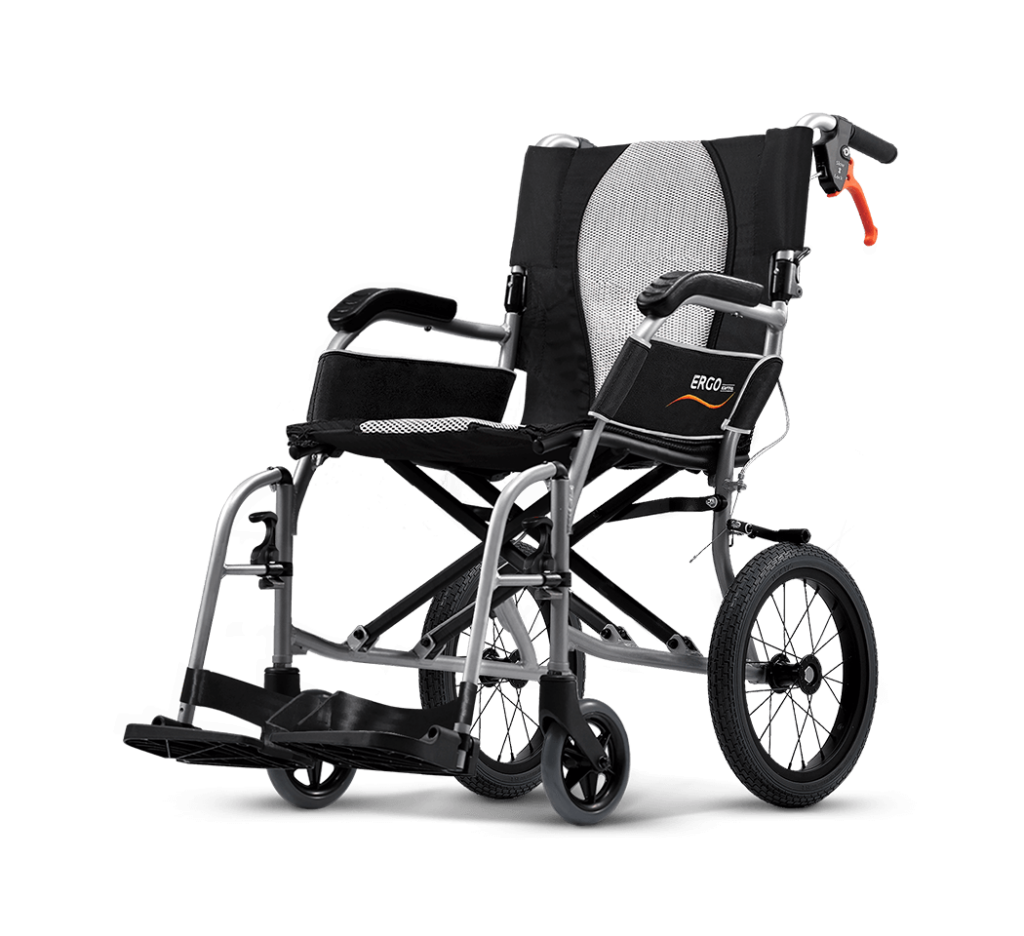

| Product Model | Ergo Lite 2 (KM-2512) | |||
| Nominal seat width (mm/in)* | 400 / 16 | 450 / 18 | 400 / 16 | 450 / 18 |
| Nominal seat depth (mm/in)** | 420 / 16 | 420 / 16 | 420 / 16 | 420 / 16 |
| Front caster / Rear wheel size (in) | 6 / 14 | 6 / 14 | 6 / 20 | 6 / 20 |
| Backrest height (mm) | 420 | 420 | 420 | 420 |
| Headrest height above seat (mm) | N/A | N/A | N/A | N/A |
| Armrest to seat distance (mm) | 215 | 215 | 215 | 215 |
| Front location of armrest structure (mm) | 310 | 310 | 310 | 310 |
| Seat surface height at front edge (mm) | 480 | 480 | 480 | 480 |
| Footrest to seat distance (mm) | 360 ~ 410 | 360 ~ 410 | 360 ~ 410 | 360 ~ 410 |
| Effective seat width (mm) | 400 | 450 | 400 | 450 |
| Effective seat depth (mm) | 430 | 430 | 430 | 430 |
| Seat plane angle (X°) | 5 | 5 | 5 | 5 |
| Backrest angle (X°) | 11 | 11 | 11 | 11 |
| Seat to backrest angle (X°) | 96 | 96 | 96 | 96 |
| Leg to seat angle (X°) | 102 | 102 | 102 | 102 |
| Overall length with legrest (mm) | 935 | 935 | 930 | 930 |
| Overall width (mm) | 570 | 615 | 595 | 645 |
| Overall height (mm) | 900 | 900 | 900 | 900 |
| Folded length (mm) | 635 | 635 | 695 | 695 |
| Folded width (mm) | 280 | 295 | 280 | 295 |
| Folded height (mm) | 700 | 710 | 700 | 710 |
| Total mass (kg) | 9.2 | 9.3 | 10.7 | 10.9 |
| Mass of the heaviest part (kg) | 6.7 (14Q) 8.1 (14F) | 6.9 (14Q) 8.3 (14F) | 6.7 (20Q) 9.7 (20F) | 6.9 (20Q) 9.8 (20F) |
| Maximum user weight (kg) | 100 | 100 | 100 | 100 |
| Minimum turning radius (mm) | 810 | 840 | 820 | 840 |
| Minimum turning radius without user (mm) | 725 | 750 | 735 | 760 |
| Pivot width (mm) | 1140 | 1160 | 1150 | 1180 |
| Static stability downhill (X°) | 18.1 | 18.1 | 17.9 | 17.9 |
| Static stability uphill (X°) | 10.8 | 10.8 | 10.1 | 10.1 |
| Static stability sideways (X°) | 11.9 | 11.9 | 11.4 | 11.4 |
| Handrim diameter (mm) | N/A | N/A | 430 | 430 |
| Horizontal location of axle (mm) | 20 | 20 | 5 | 5 |
Manual Ver.25
Remark :
* Nominal seat width is measured the width of seat cushion at 120mm in front of the backrest. This value is mainly used in the product ordering process.
** Nominal seat depth is measured from the front end of the seat cushion to the back cushion. This value is mainly used in the product ordering process.
– The actual product specifications differ from the data in the table by ±1 cm ±0.5 kg.
– The actual product specifications may vary according to different configurations.
– Karma reserves the right to modify information herein without further notice.
