Especificación

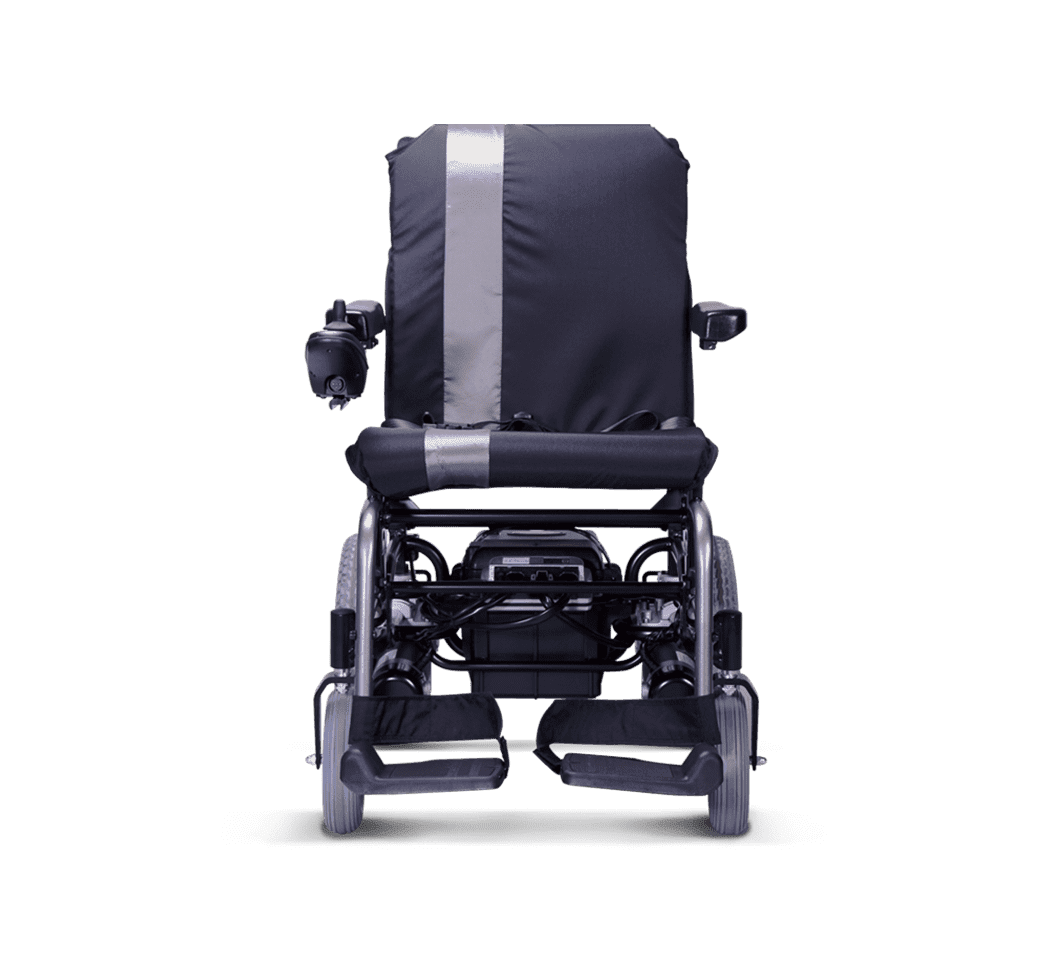

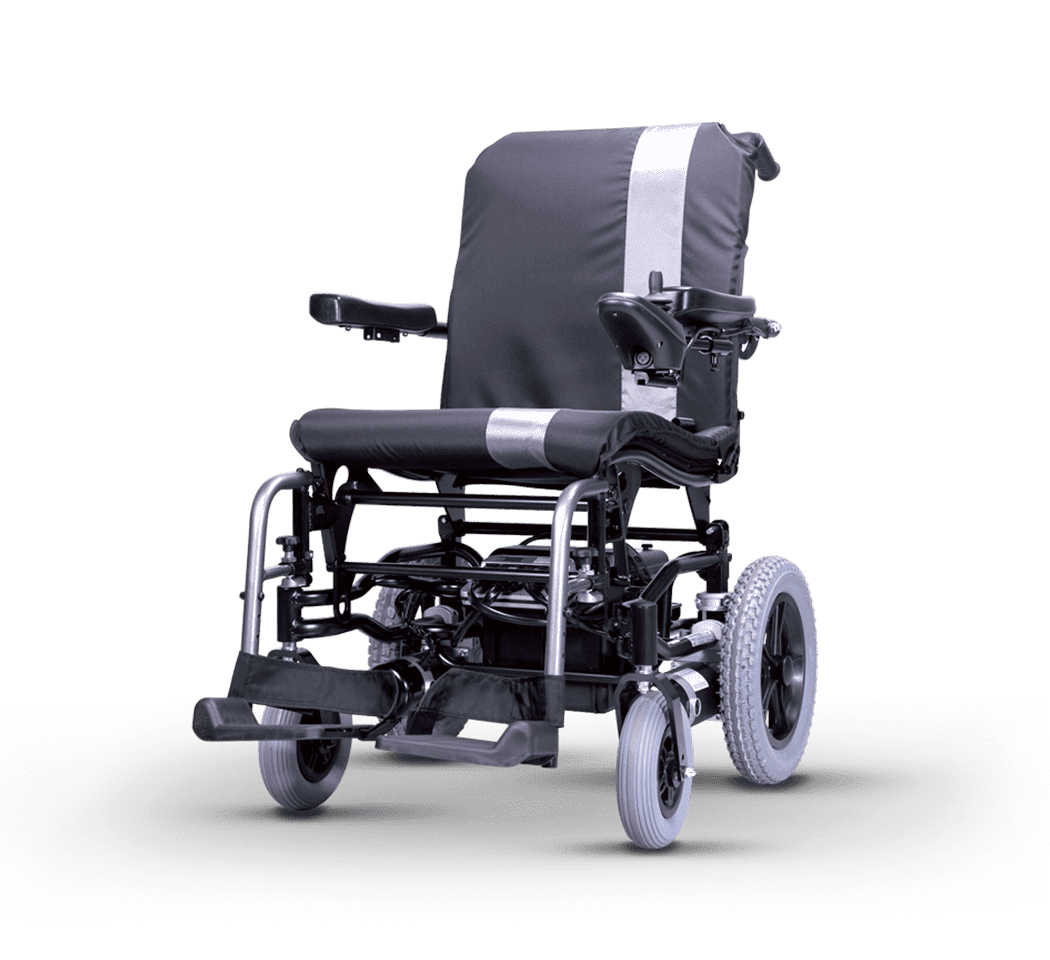

| Product Model | KP-10.3S |
| Nominal seat width (in) | 18 |
| Front x Rear wheel size (in) | 8 x 12 |
| Maximum user weight (kg) | 120 |
| Overall length with legrest (mm) | 1030 ~ 1075 |
| Overall width (mm) | 620 |
| Overall height (mm) | 905 ~ 935 |
| Folded length (mm) | 660 |
| Folded width (mm) | 620 |
| Folded height (mm) | 155 |
| Total mass (kg) | 51.3(22 Ah) / 54.9(36 Ah) |
| Total mass without batteries (kg) | 33.5(22 Ah) / 37.8(36 Ah) |
| Mass of the heaviest part (kg) | 16.5(22 Ah) / 20.6(36 Ah) |
| Maximum speed forward (km) | 6 |
| Drive range (km) | 14.9(22 Ah) / 18.7(36 Ah) |
| Minimum turning radius (mm) | 885 |
| Minimum turning radius without user (mm) | 755 |
| Reversing width (mm) | 1050 |
| Ground clearance (mm) | 100 |
| Obstacle climbing (mm) | 50 |
| Static stability downhill (X°) | 25.5 |
| Static stability uphill (X°) | 11 |
| Static stability sideways (X°) | 20.5 |
| Dynamic stability uphill (X°) | 6 |
| Ability to climb rated slope (X°) | 6 |
| Braking method | Electromagnetic Brake |
| Minimum braking distance from max speed (mm) | 1000 |
| Motor power (W) | 200 |
| Battery capacity (Ah) | 22*2 / 36*2 |
| Charger output current (A) | 4 |
| Battery Compartment (L x W x H) (mm) | 180 x 80 x 165 (22 Ah) (Single Compartment) 200 x 135 x 155 (36 Ah) (Single Compartment) |
| Seat plane angle (X°) | 12 |
| Effective seat depth (mm) | 475 |
| Nominal seat depth (mm) | 460 |
| Effective seat width (mm) | 450 |
| Seat surface height at front edge (mm) | 540 |
| Backrest angle (X°) | 10 ~ 24 |
| Seat to backrest angle (X°) | 88 ~ 102 |
| Backrest height (mm) | 500 |
| Headrest height above seat (mm) | - |
| Leg to seat angle (X°) | 90 |
| Footrest to seat distance (mm) | 390 ~ 465 |
| Armrest to seat distance (mm) | 200 |
| Front location of armrest structure (mm) | 400 ~ 540 |
Observación: Karma reserva el derecho de modificar la información aquí sin aviso previo.
