Especificación
| Product Name | KP-31-CPT(18") | KP-31-CPT(20") |
| Seat Width (mm) | 460 | 510 |
| Seat Depth (mm) | 430 | 480 |
| Front Seat Height (mm) | 520 | 540 |
| Backrest Height (mm) | 530 | 540 |
| Seat Angle (X°) | 5 | 5 |
| Back Angle (X°) | 0~65 | 0~65 |
| Armrest Height (mm) | 210~310 | 210~310 |

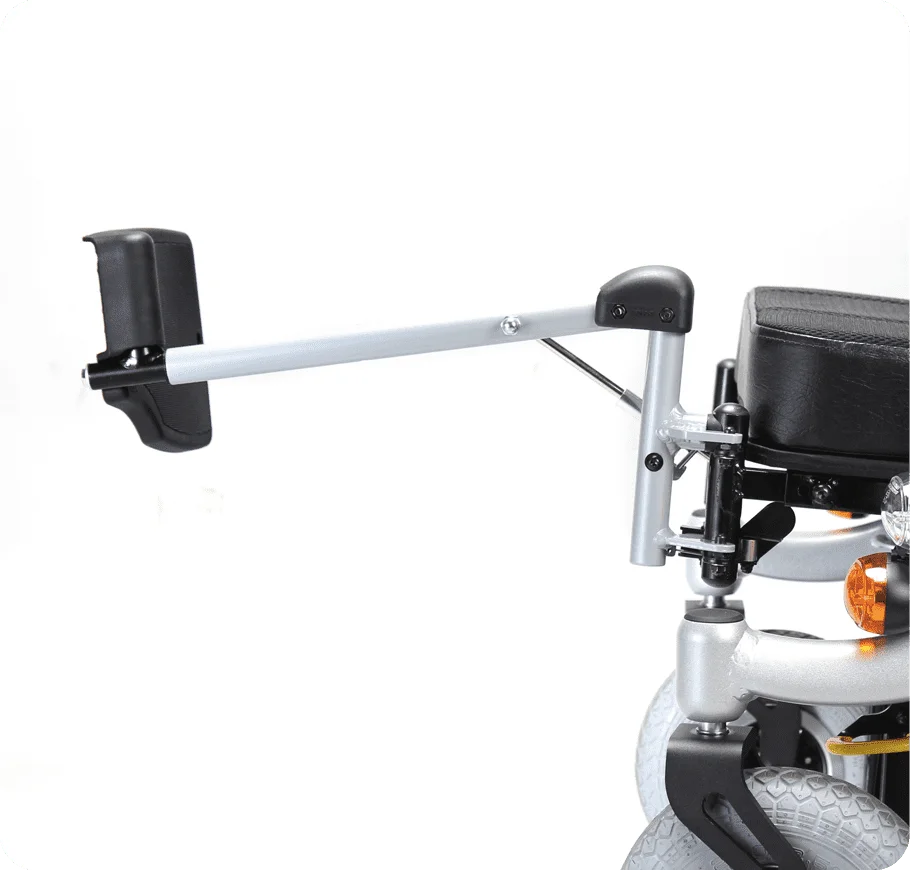

| Legrest Length (mm) | 370~480 | 370~480 |

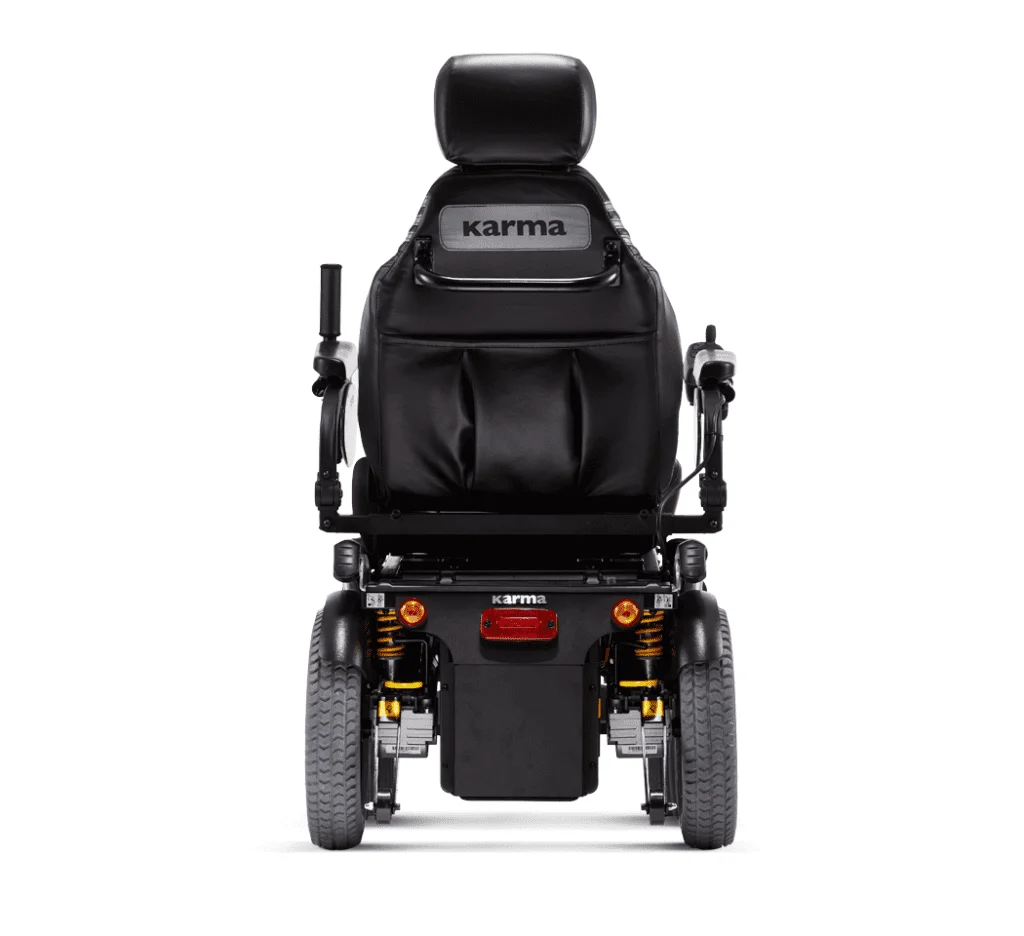

| Suspension | Rear | Rear |
| Front/Middle/Rear Wheel (inch) | 9/-/14 | 9/-/14 |
| Controller | VR2 | VR2 |
| Motor (W) | 300 | 300 |
| Battery (Ah) | 50 *2 | 50 *2 |
| Min. Turning Radius (mm) | 820 | 820 |
| Min. Ground Clearance (mm) | 70 | 70 |
| Max Safe Slope | 8° | 8° |
| Max. Obstacle Height (mm) | 60 | 60 |
| Max. Speed (km) | 10 | 10 |
| Max Driving Range (km) | 30 | 30 |
| Max. User Weight (kg) | 136 | 136 |
| Weight w/ Batteries (kg) | 100 | 100 |
| Weight w/o Batteries (kg) | 70 | 70 |
| Overall L x W x H (mm) | 1070*630*1280 | 1070*630*1280 |
Observación: Karma reserva el derecho de modificar la información aquí sin aviso previo.
