Especificación
Product ModelMGN-KIS (Adult)MGN-KIS (Pediatric)
Nominal seat width
(mm)*		410/435/460/485/510310/335/360/385/410
Nominal seat depth
(mm)**		410~510310~410
Front caster size (in)8
Drive wheel size (in)14
Rear caster size (in)6
Backrest height with
cushion (mm)		510~560410~460

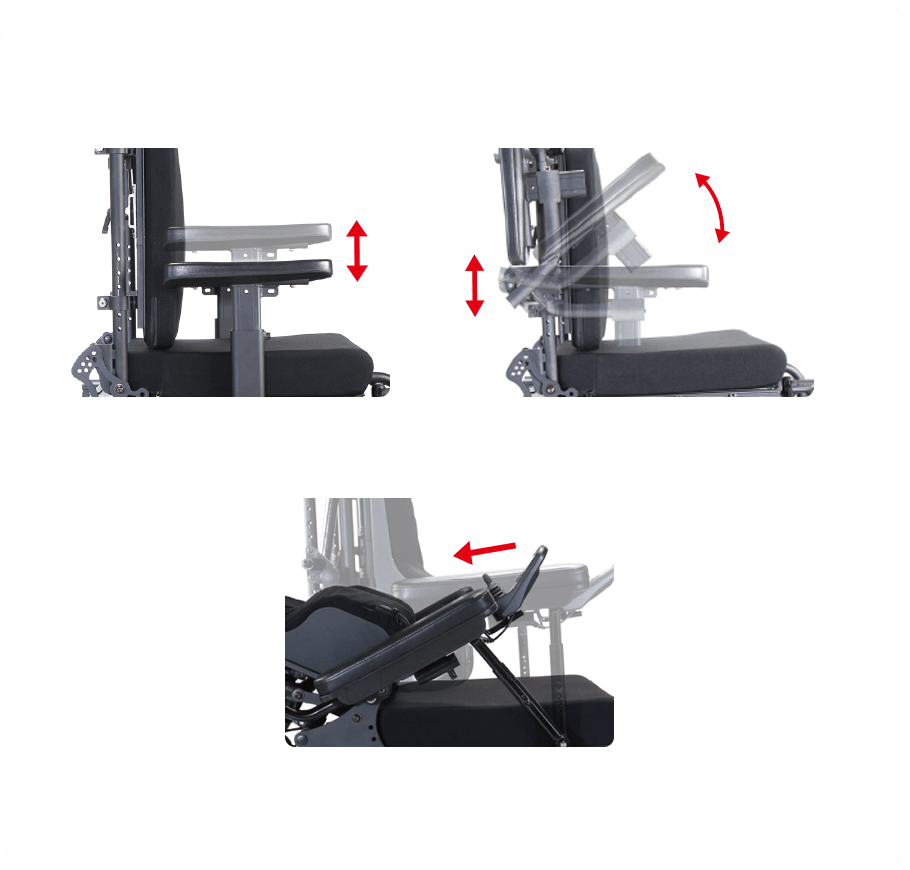

Armrest to seat distance
with cushion (mm)		200~300150~250
Seat surface height at front edge with cushion
(mm)		440~515 (without powered tilting, reclining and lifting) /
460~540 (with powered tilting only) /
485 ~785 (with tilting and lifting)

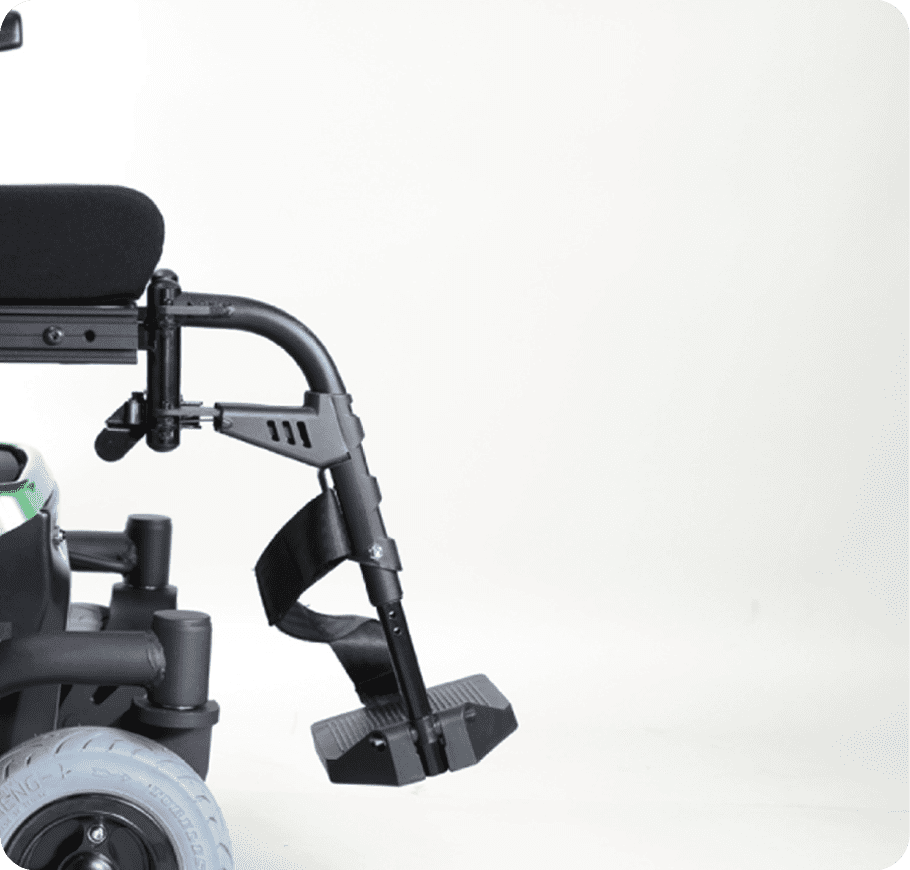

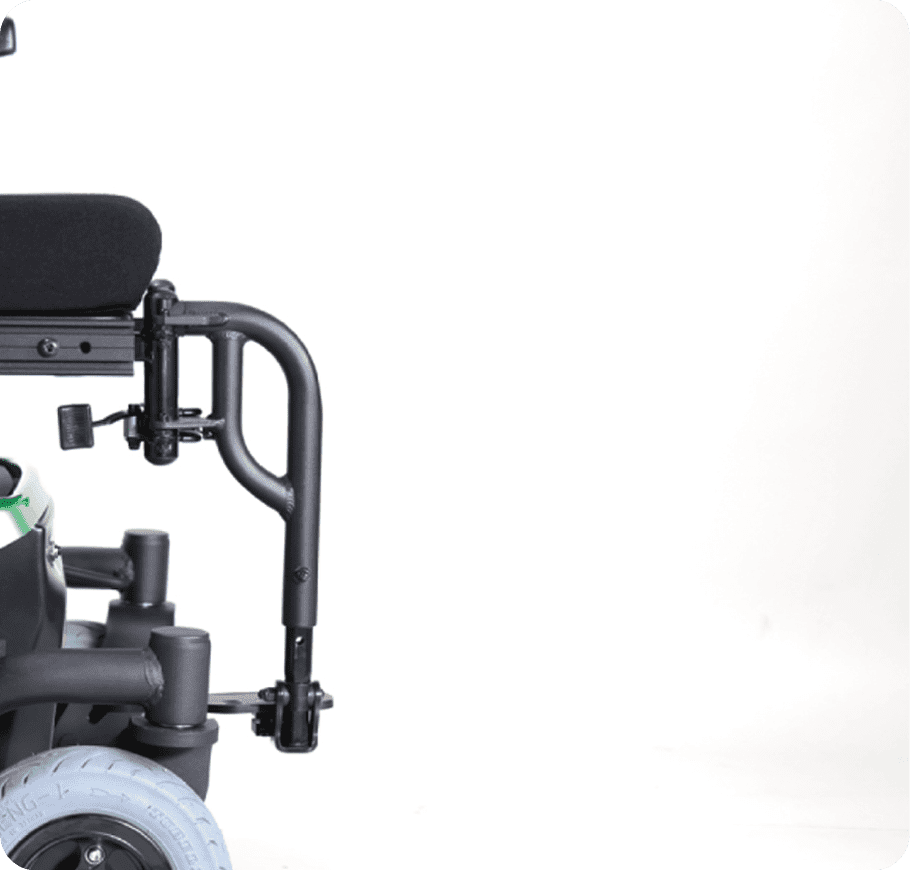

Footrest to seat
distance with cushion
(mm)		330 ~480(adult)240~350
Seat plane angle (X°)0/3/6(without powered tilting, reclining and lifting) /
-6/-3/0/3/6( with powered tilting only)
Backrest angle (X°)0~30(manual) / 0~80 (powered reclining)

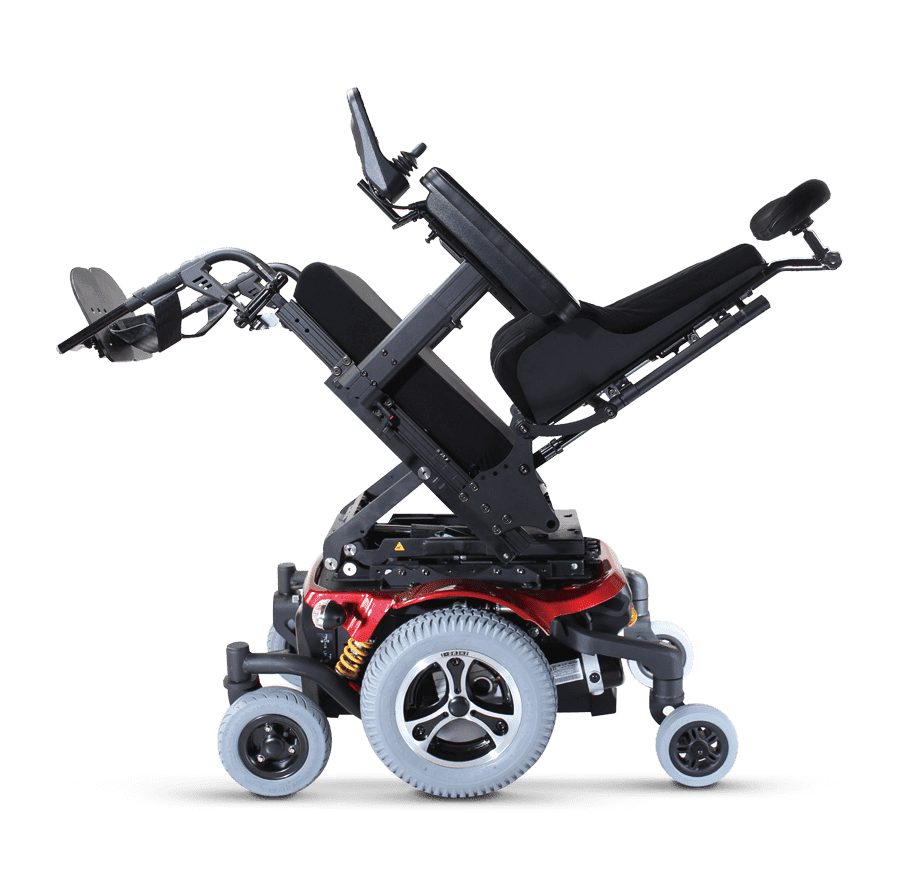

Manual/ Powered Tilt,
Recline (X°)		Powered Tilting：0~45(T) ；0~45(LT)
Manual Reclining：0~30
Powered Reclining：0~80
Overall Length (w/wo
legrest)* Width* Height
(mm)		1170/940*650*1215~1295 (without powered tilting and lifting)/
1170/940*650*1215~1295 (with powered tilting )/
1170/940*605*1240~1540 (with powered lifting and tilting)
Total Weight(W/
Batteries)
Total mass (kg)		117 (without powered tilting and lifting)/
124 (with powered tilting )/
141 (with powered lifting and tilting )
Total mass without
batteries (kg)		87 (without powered tilting and lifting)/
94 (with powered tilting )/
111 (with powered lifting and tilting )
Maximum user weight
(kg)		136 (adult)

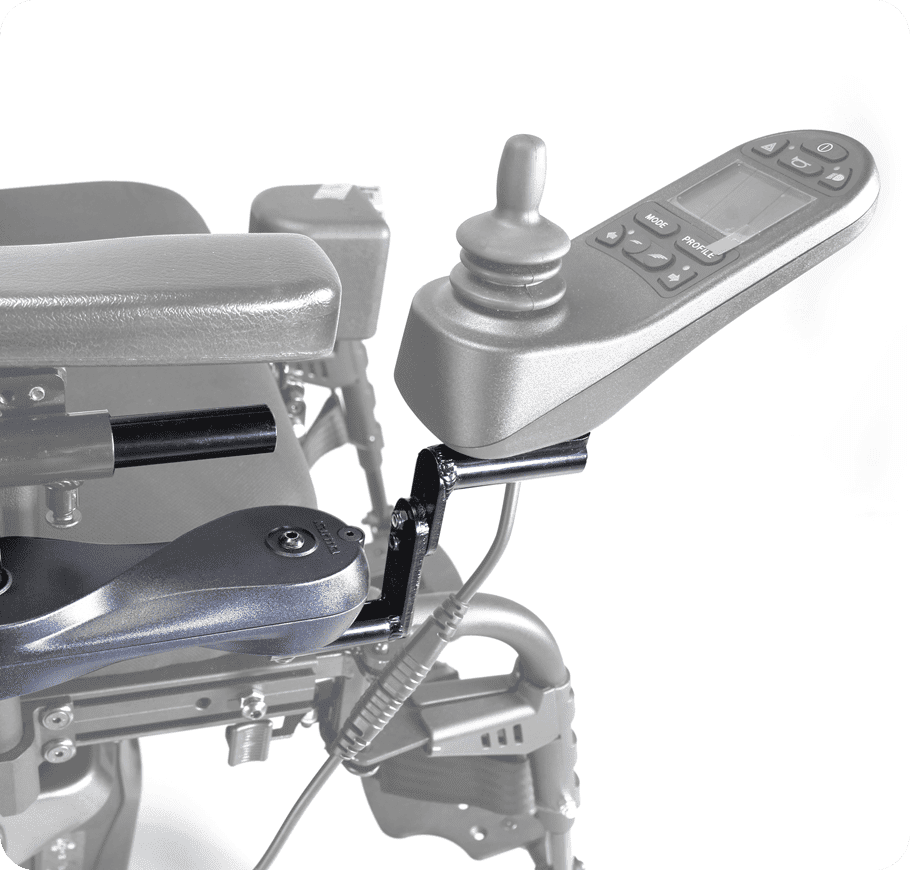

ControllerVR2/ R-net (optional)
Motor power (W)450
Battery capacity (Ah)50* 2
Drive range (km) ***25
Maximum speed
forward (km/h)		6/10/12
Obstacle climbing (mm)50
Minimum turning radius
(mm)		725675
Dynamic stability (X°)6

Observación: Karma reserva el derecho de modificar la información aquí sin aviso previo.
