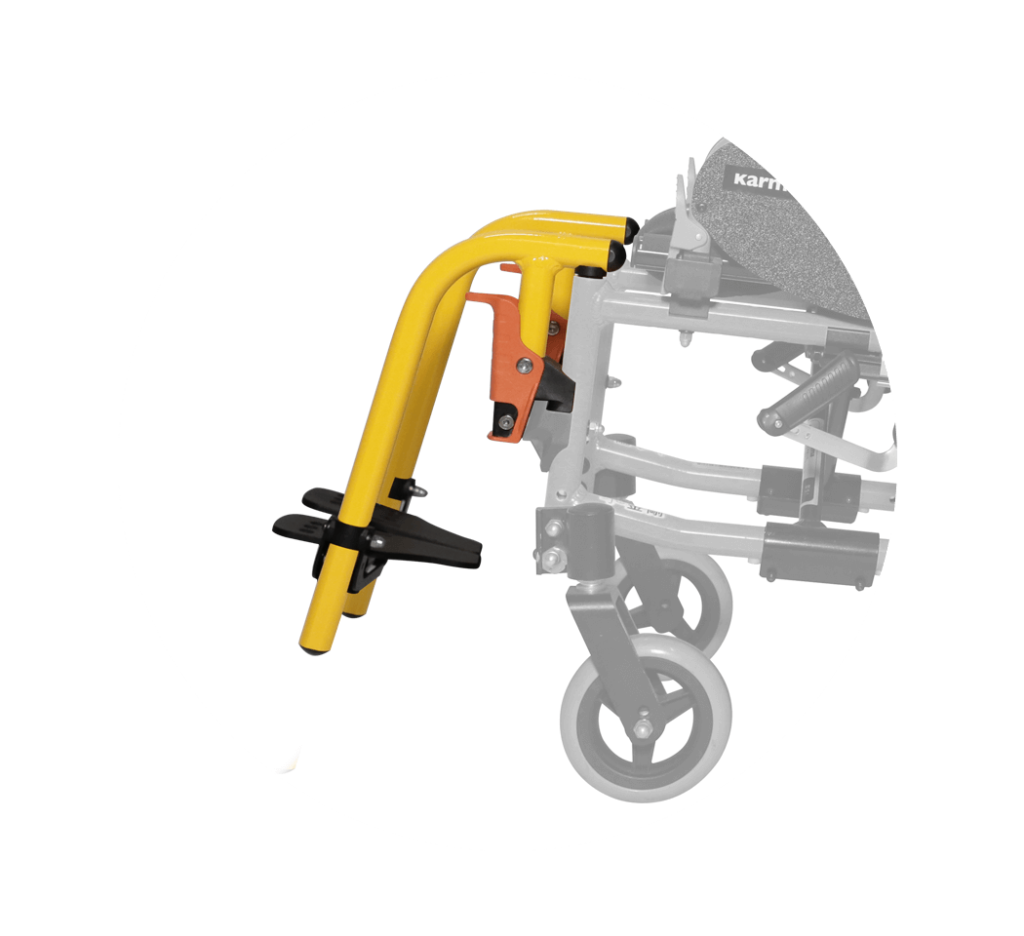

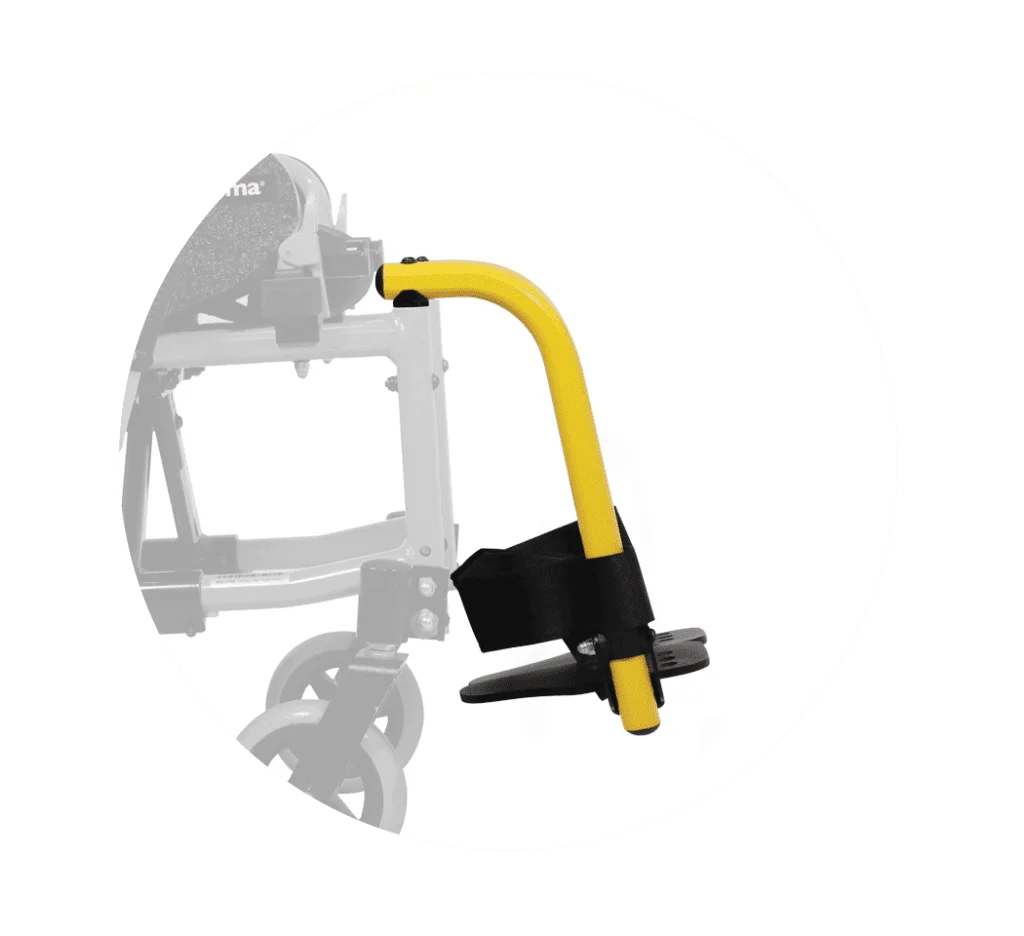

80° (Cone style) Detachable Legrest

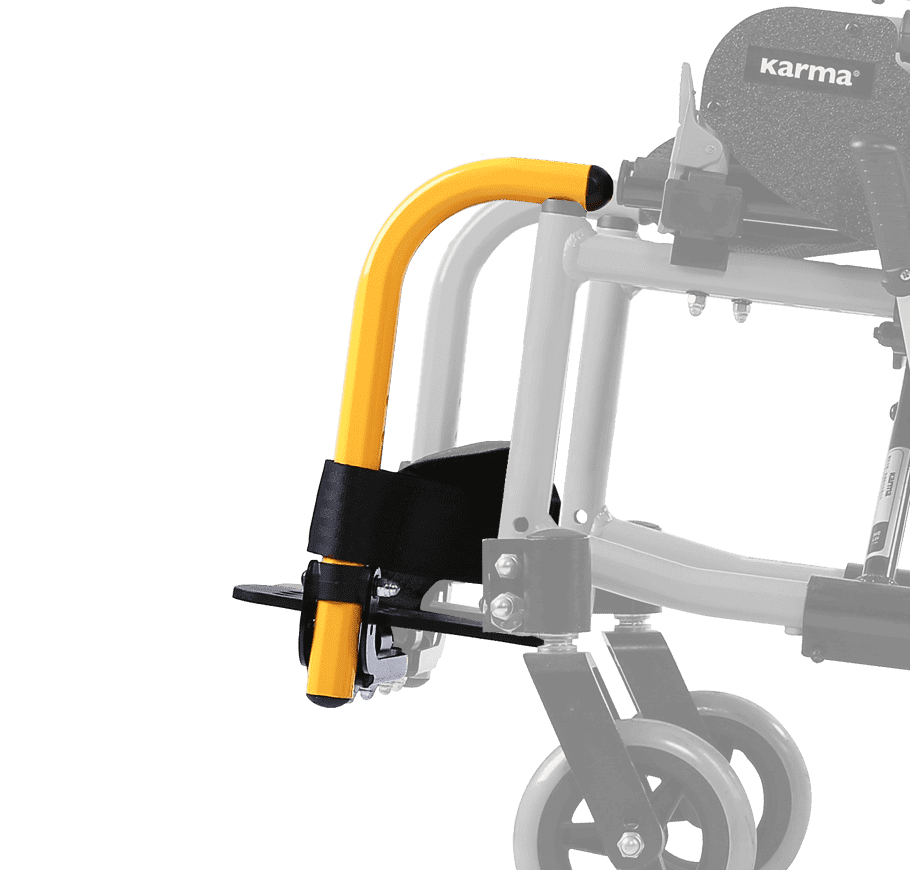

Elevating (Cone style) Detachable Legrest
Transparent Table Tray
Multiple Footplate Sizes
Height Adjustable and Detachable Armrest

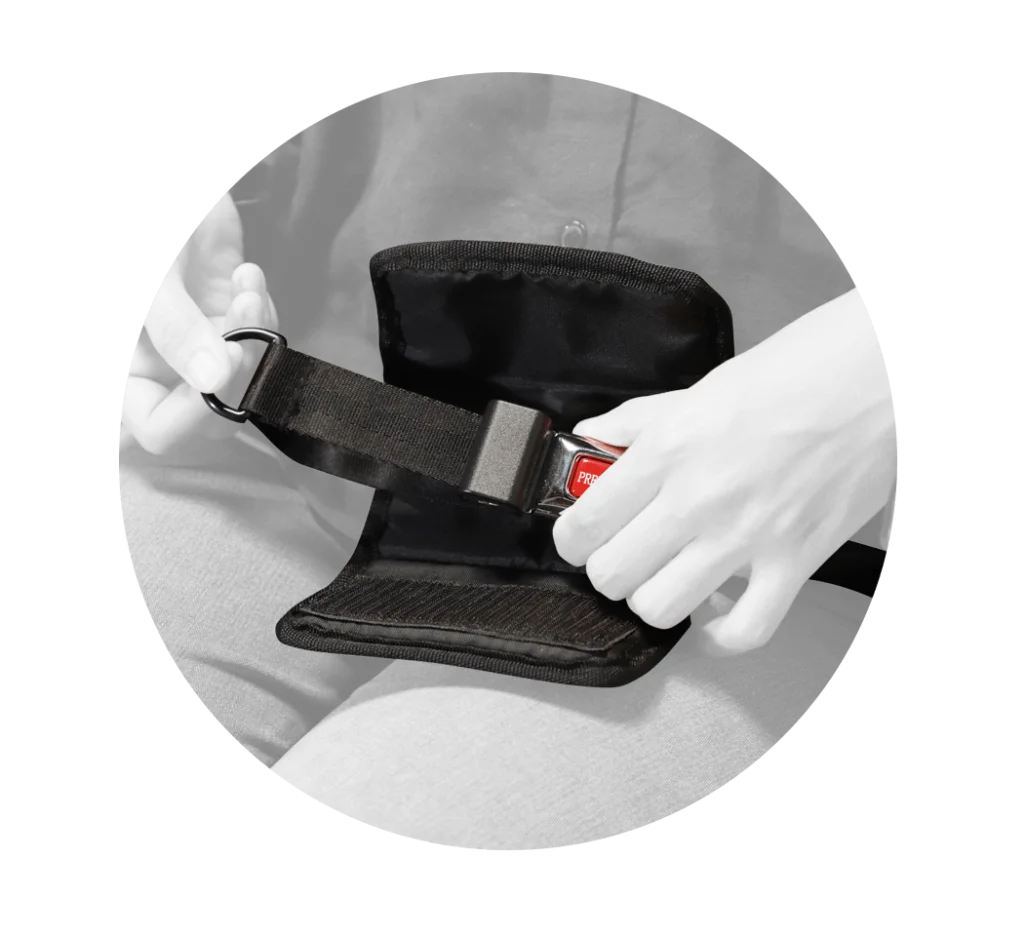

1″ Metal Buckle Pelvic Belt

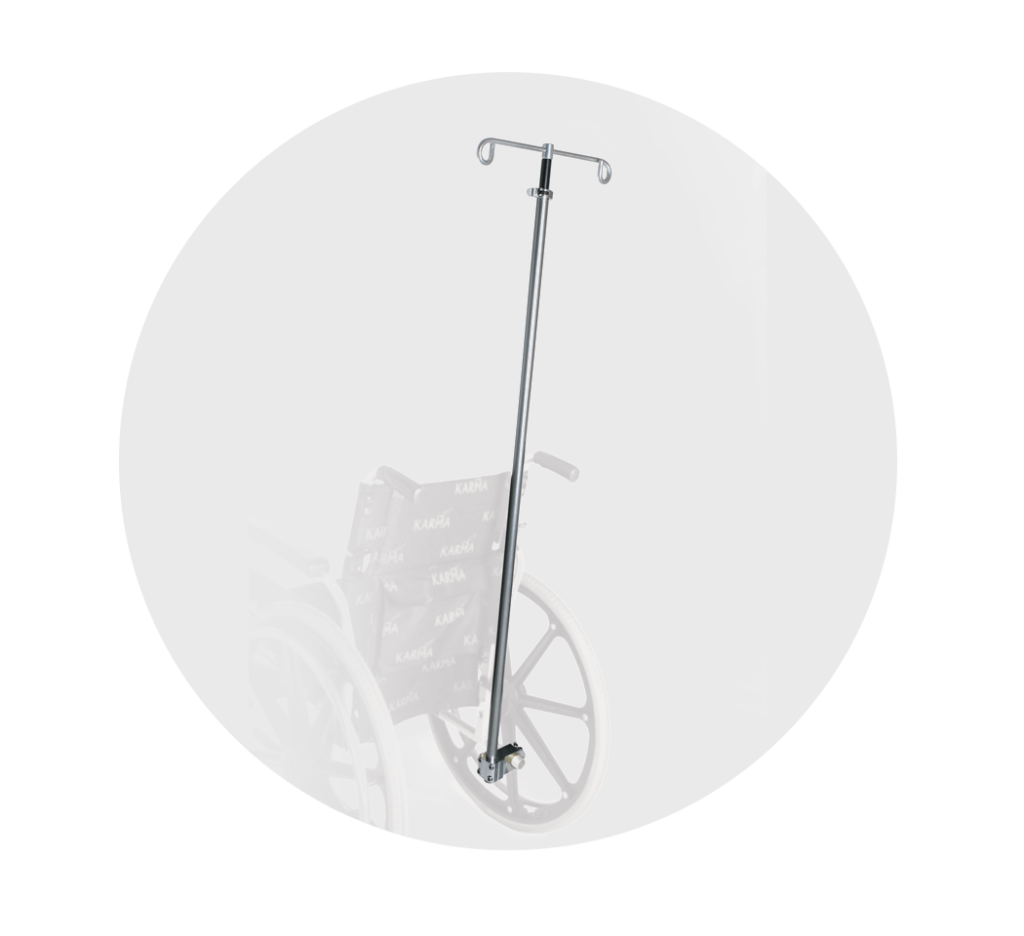

I.V. Pole Holder
Cane Holder
Oxygen Tank Holder
80° (Cone style) Detachable Legrest
Elevating (Cone style) Detachable Legrest
Multiple Footplate Sizes
Transparent Table Tray
Height Adjustable and Detachable Armrest
1″ Metal Buckle Pelvic Belt
I.V. Pole Holder
Cane Holder
Oxygen Tank Holder

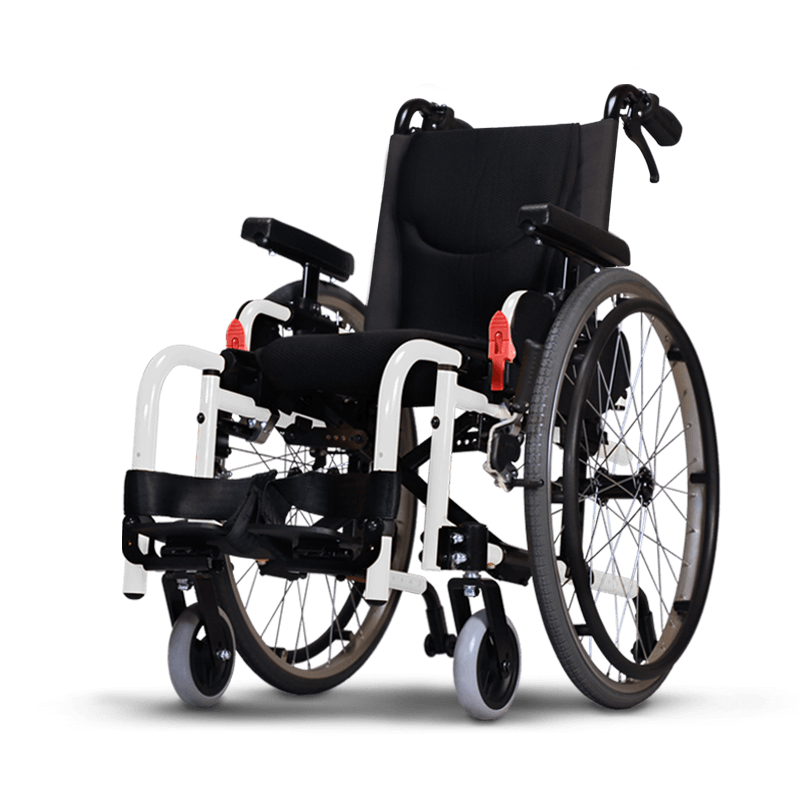

Frame Colors

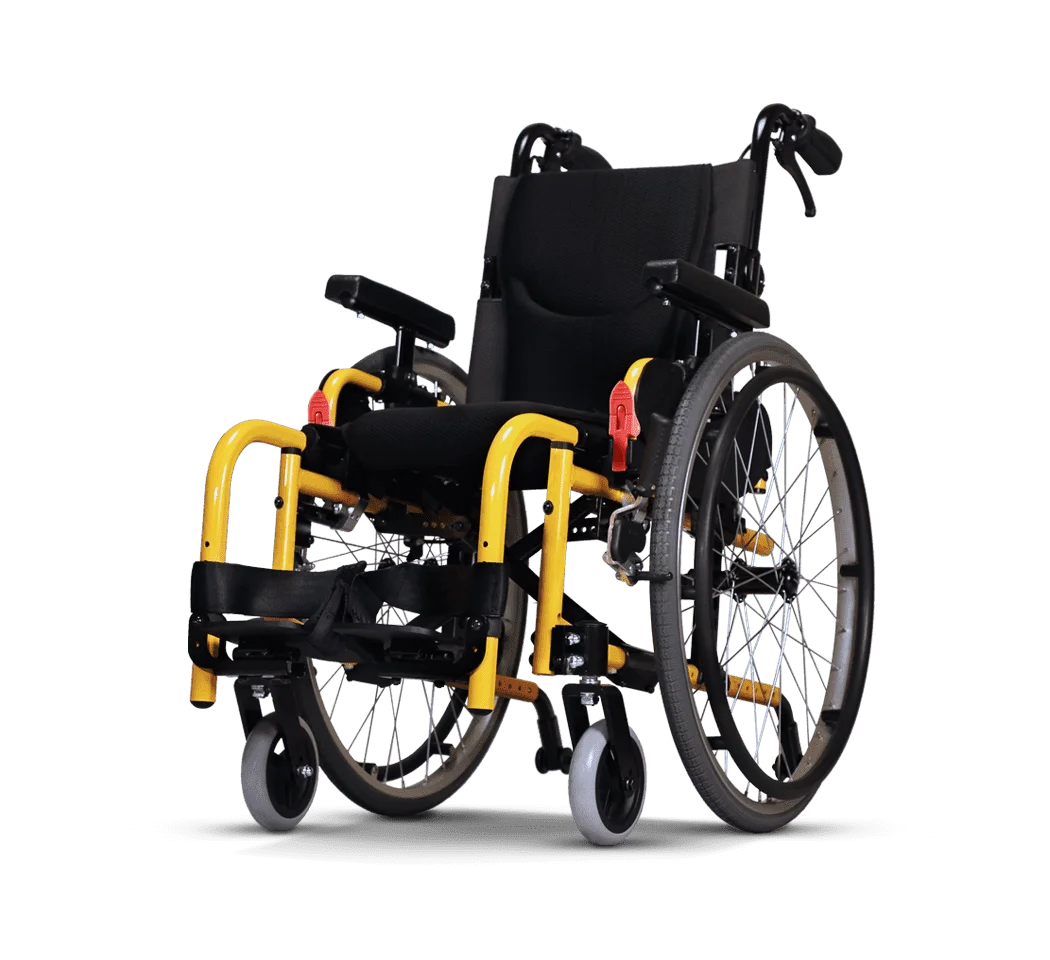

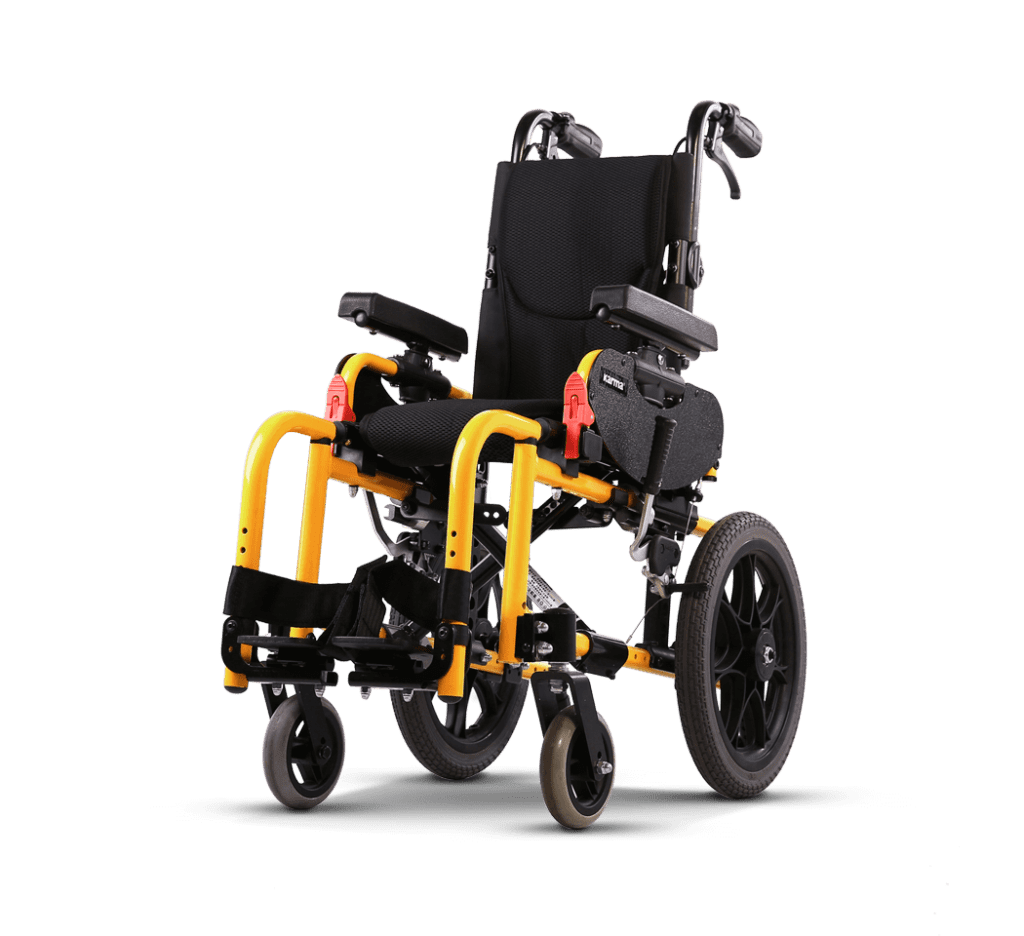

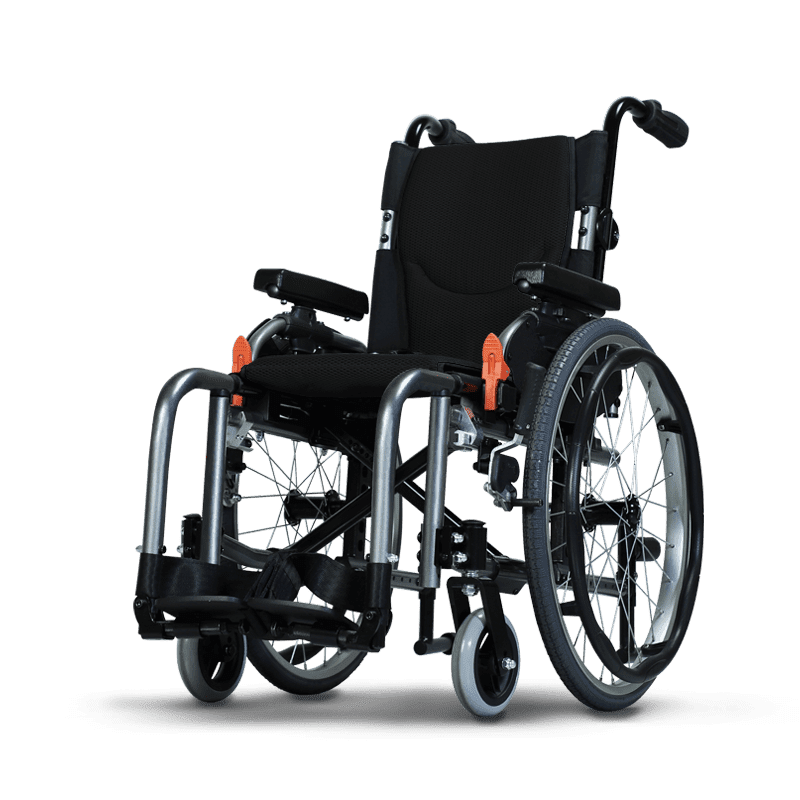

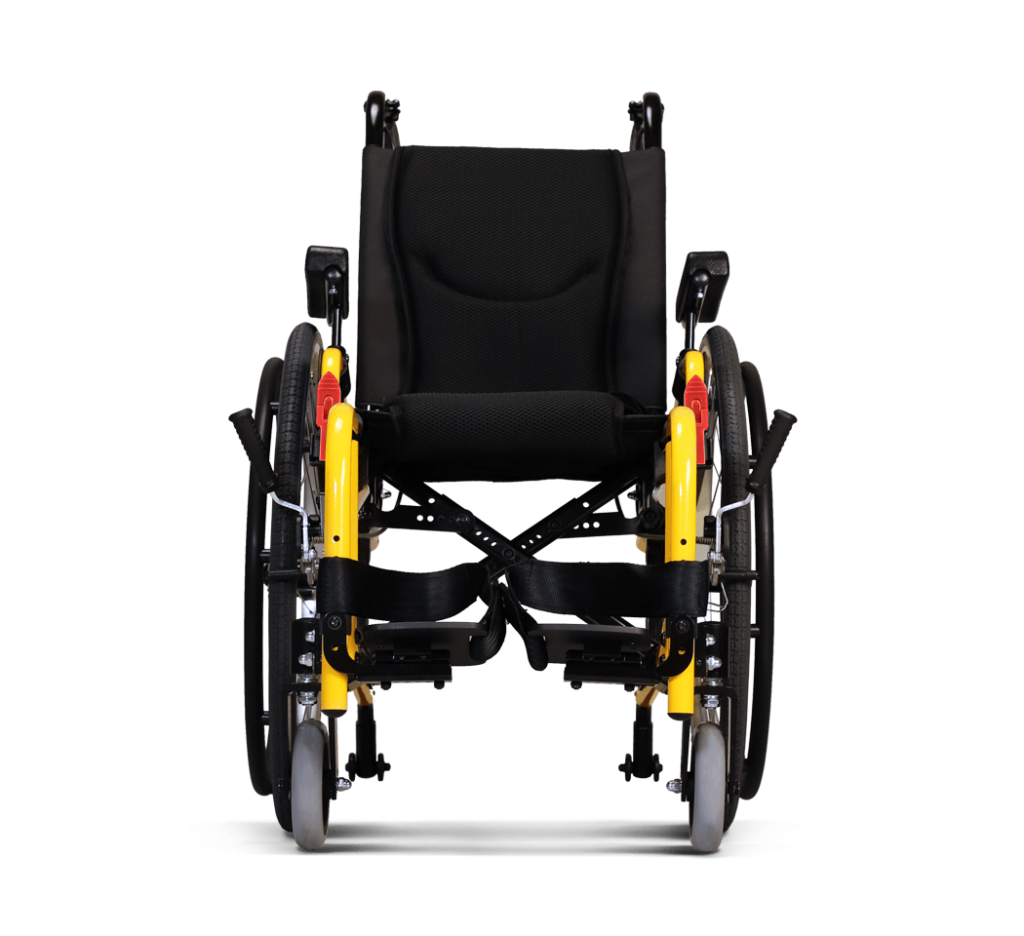

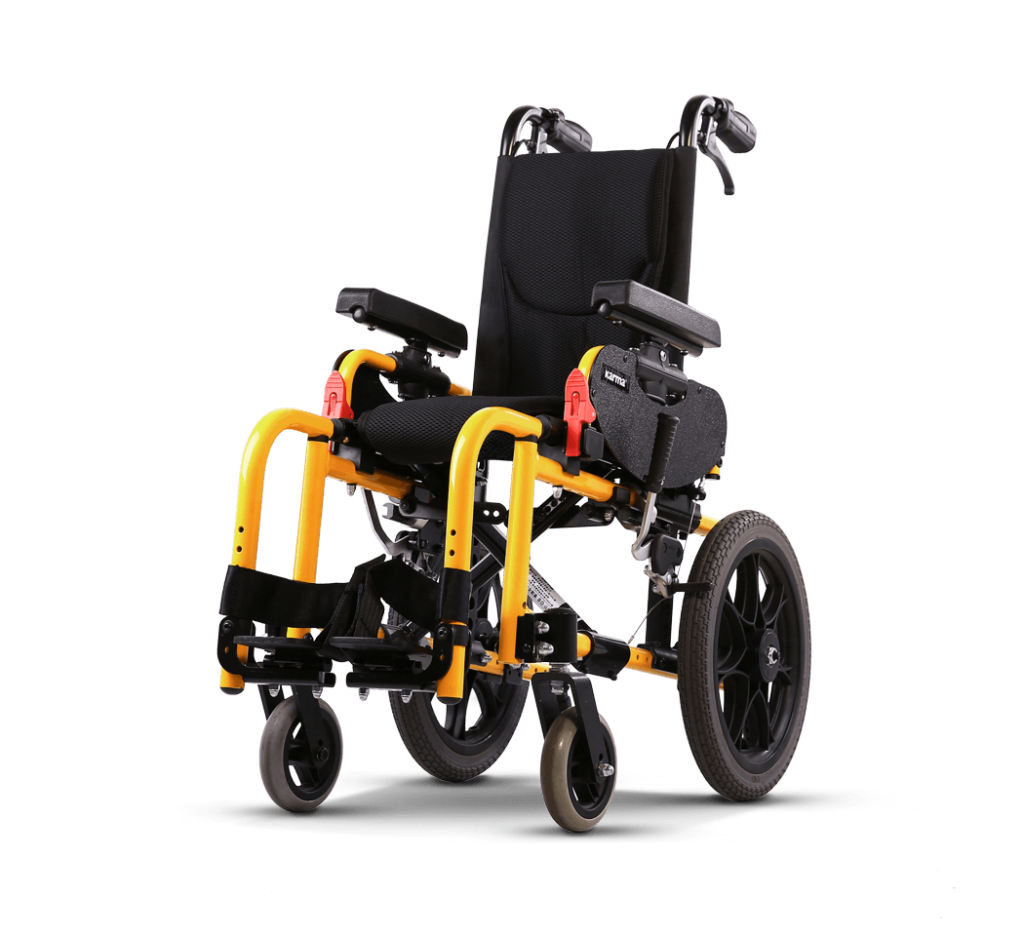

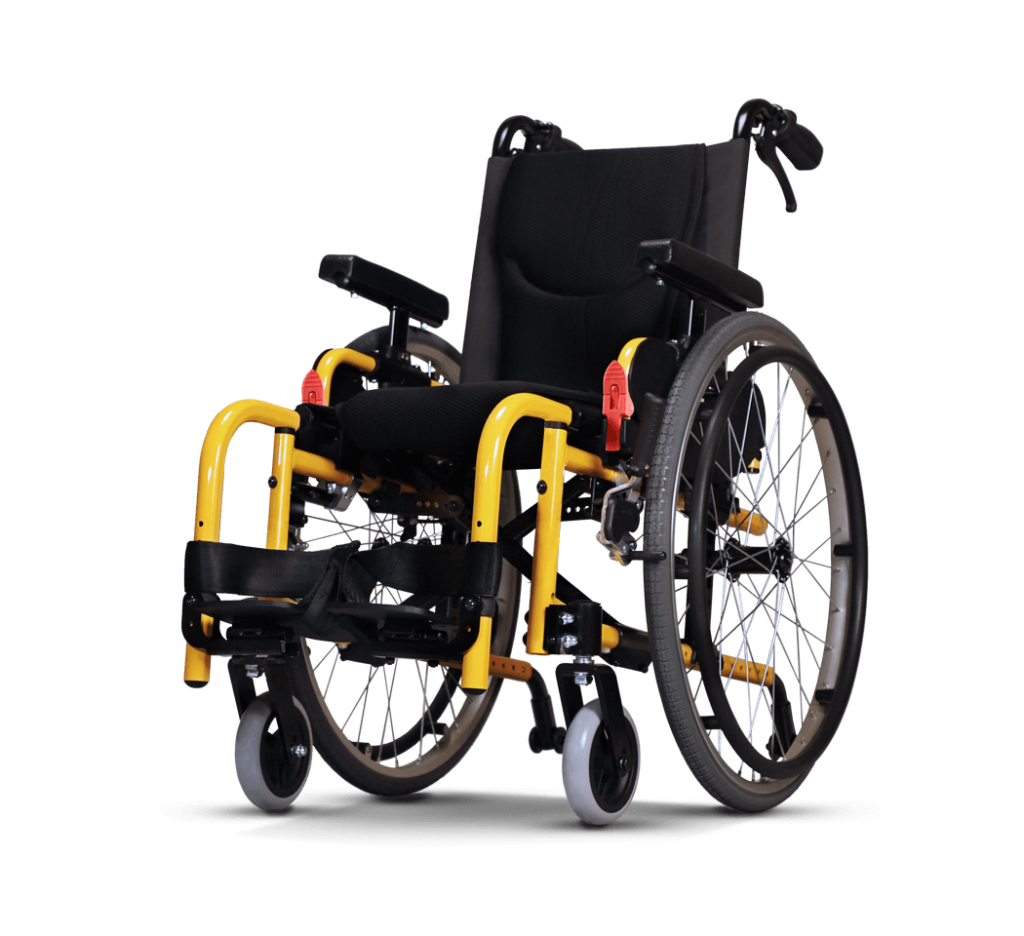

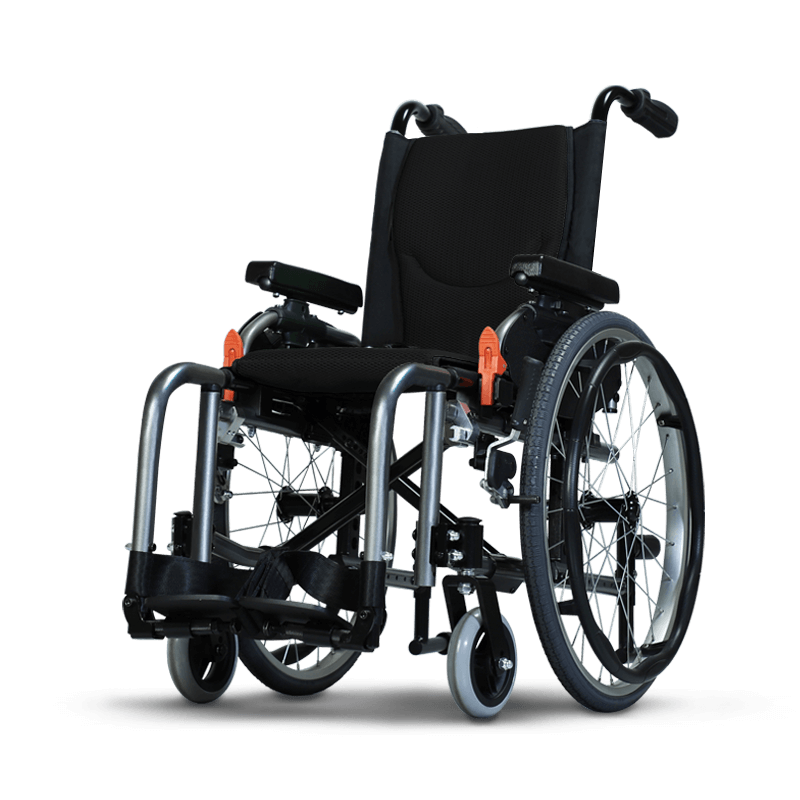

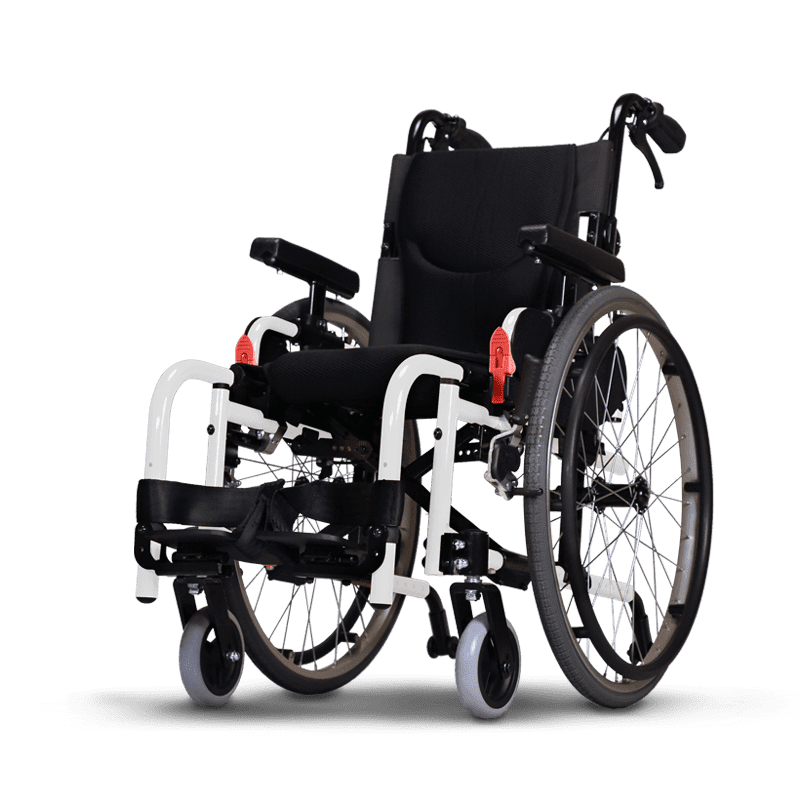

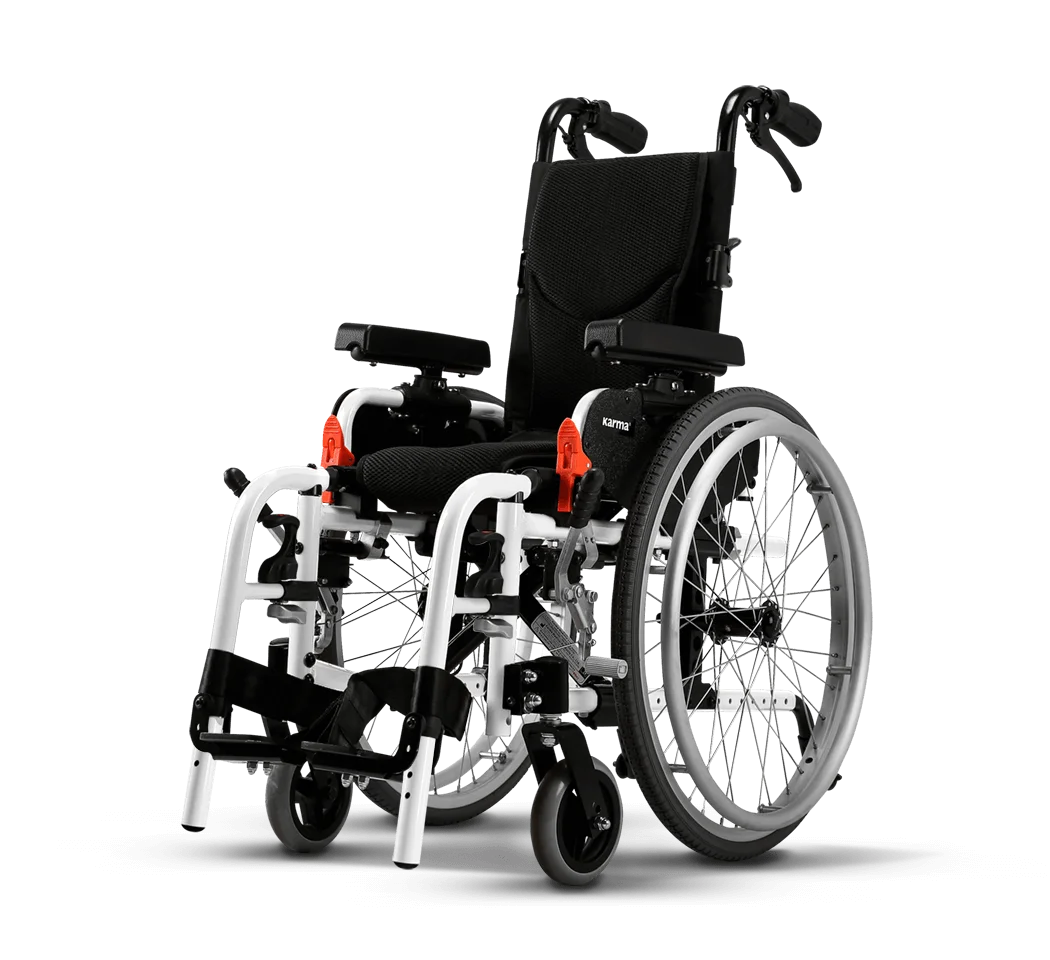

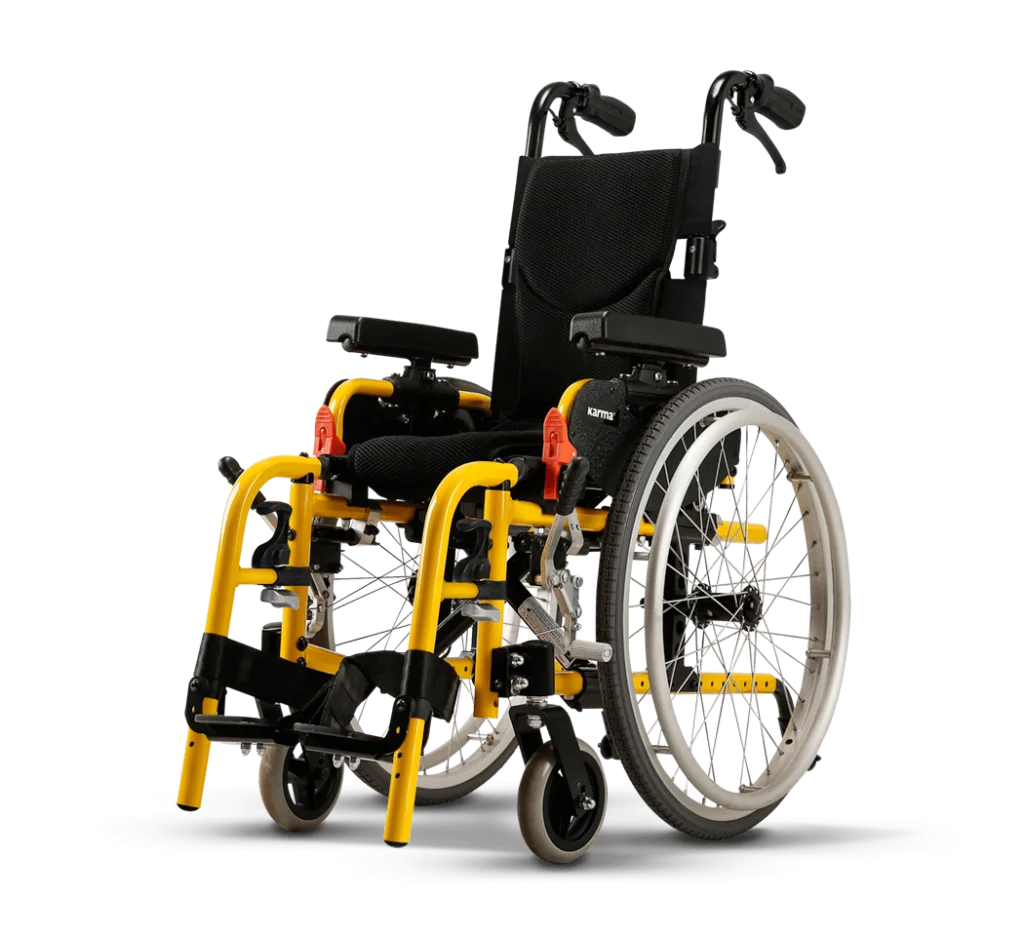

Product ModelFlexx Junior
Nominal seat width
(in)
10 ~ 1410 ~ 1410 ~ 14
Caster x Rear wheel size (in)5/6 x 145/6 x 205/6 x 22
Maximum user weight
(kg)
757575
Overall length with legrest (mm)820 ~ 835830 ~ 900840 ~ 890
Overall width (mm)450 ~ 550485 ~ 590485 ~ 590
Overall height (mm)800 ~ 850780 ~ 830825 ~ 875
Folded length (mm) 810 ~ 870810 ~ 870810 ~ 870
Folded width (mm) 325355355
Folded height (mm)725725725
Total mass (kg)14.3 ~ 14.414.9 ~ 15.015.2 ~ 15.3
Mass of the heaviest part (kg)9.7 ~ 9.89.4 ~ 9.59.4 ~ 9.5
Handrim diameter
(mm)
N/A430480
Horizontal location of axle (mm)60 ~ 10000
Minimum turning radius (mm)695 ~ 755610 ~ 700 620 ~ 710
Minimum turning radius without user (mm)605 ~ 650515 ~ 610530 ~ 610
Pivot width (mm) 950 ~ 980960 ~ 1050970 ~ 1040
Static stability downhill (X°)151515
Static stability uphill (X°)141414
Static stability uphill with
anti-tippers (X°)
N/AN/AN/A
Static stability sideways (X°)141414
Seat plane angle (X°)552
Effective seat depth
(mm)
315 ~ 395315 ~ 395315 ~ 395
Nominal seat depth (mm)285 ~ 365285 ~ 365285 ~ 365
Effective seat width
(mm)
250 ~ 350250 ~ 350250 ~ 350
Seat surface height at front edge (mm)410400415
Backrest angle (X°)11 ~ 3113 ~ 339 ~ 29
Seat to backrest angle (X°)97 ~ 11798 ~ 11897 ~ 117
Backrest height (mm)380380380
Headrest height above seat (mm)N/AN/AN/A
Leg to seat angle (X°)949494
Footrest to seat distance (mm)150 ~ 250150 ~ 250150 ~ 250
Armrest to seat distance (mm)155 ~ 235180 ~ 235220 ~ 235
Front location of armrest structure (mm)270270270
Manual ver.06
Remark :

* The actual product specifications differ from the data in the table by ±1 cm ±0.5 kg.
* The actual product specifications may vary according to different configurations.
* Karma reserves the right to modify information herein without further notice.
