Frame Colors

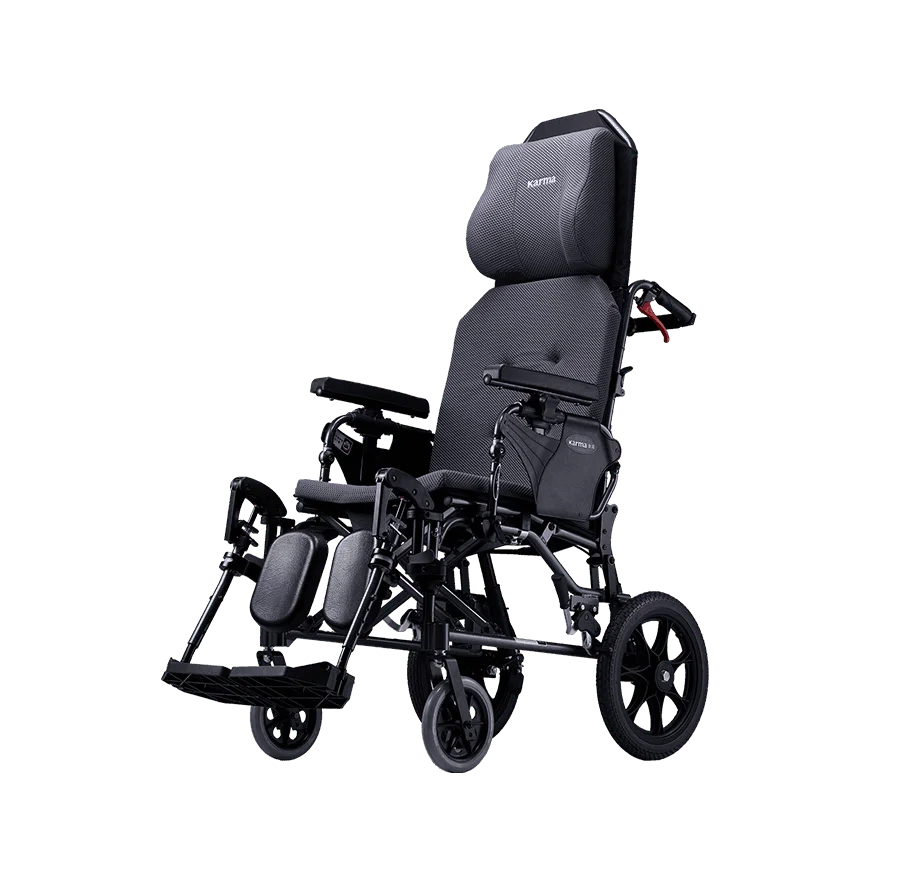

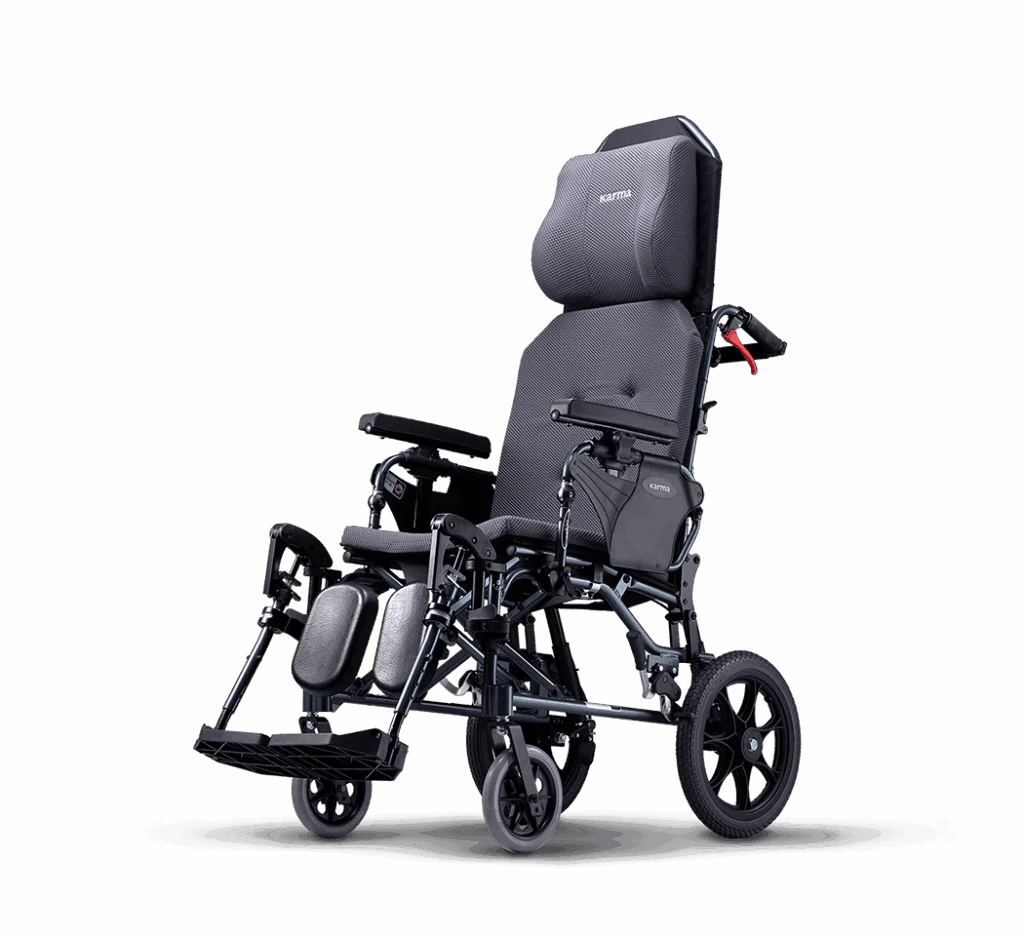

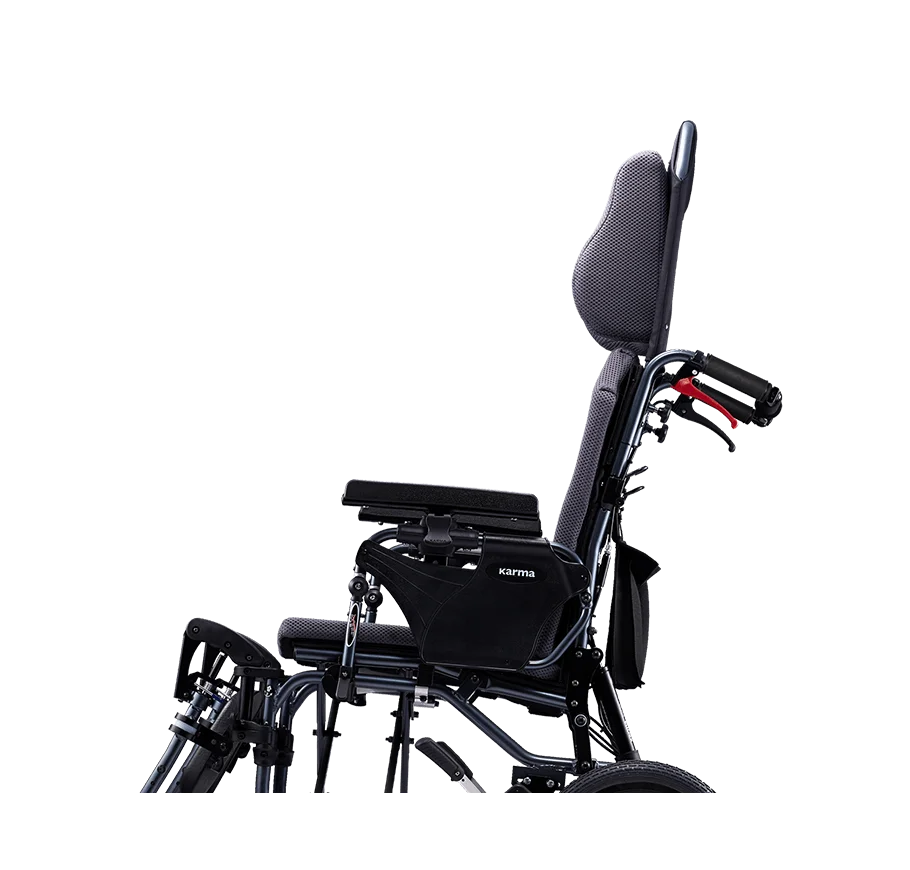

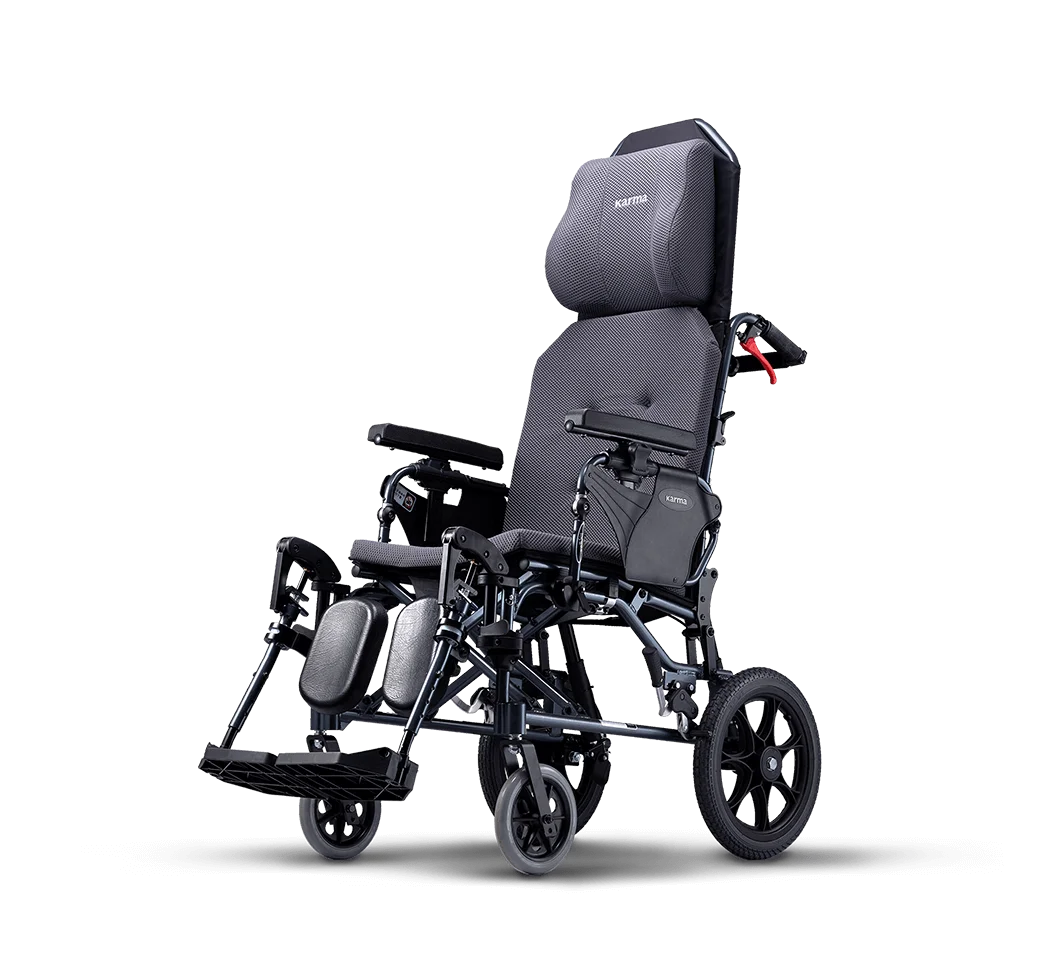

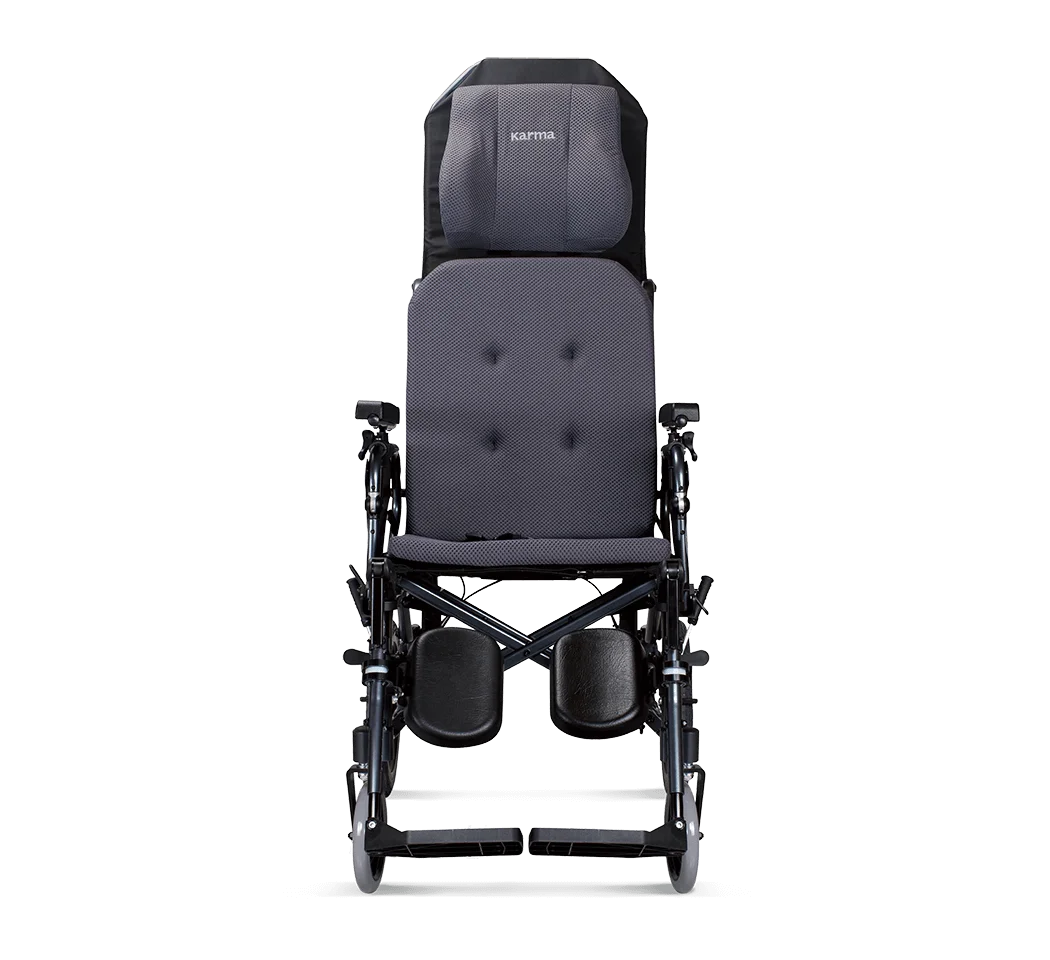

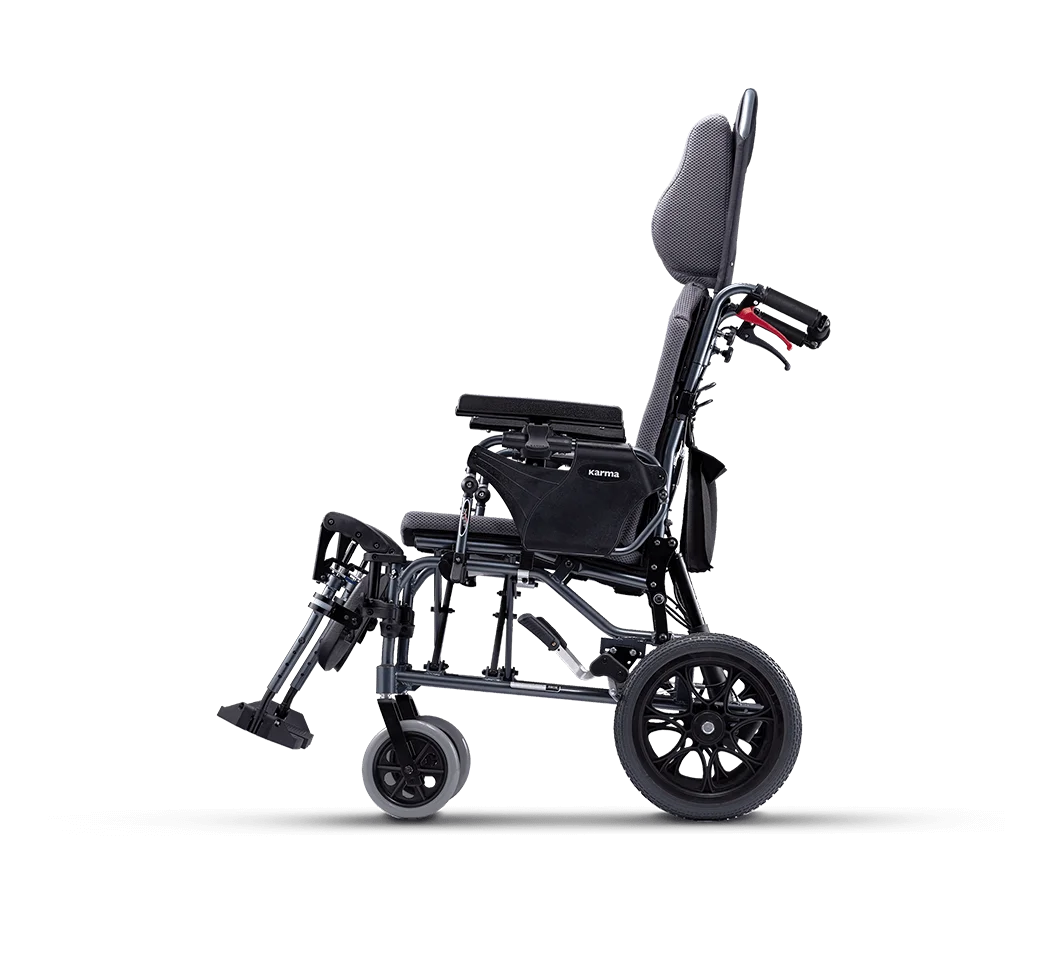

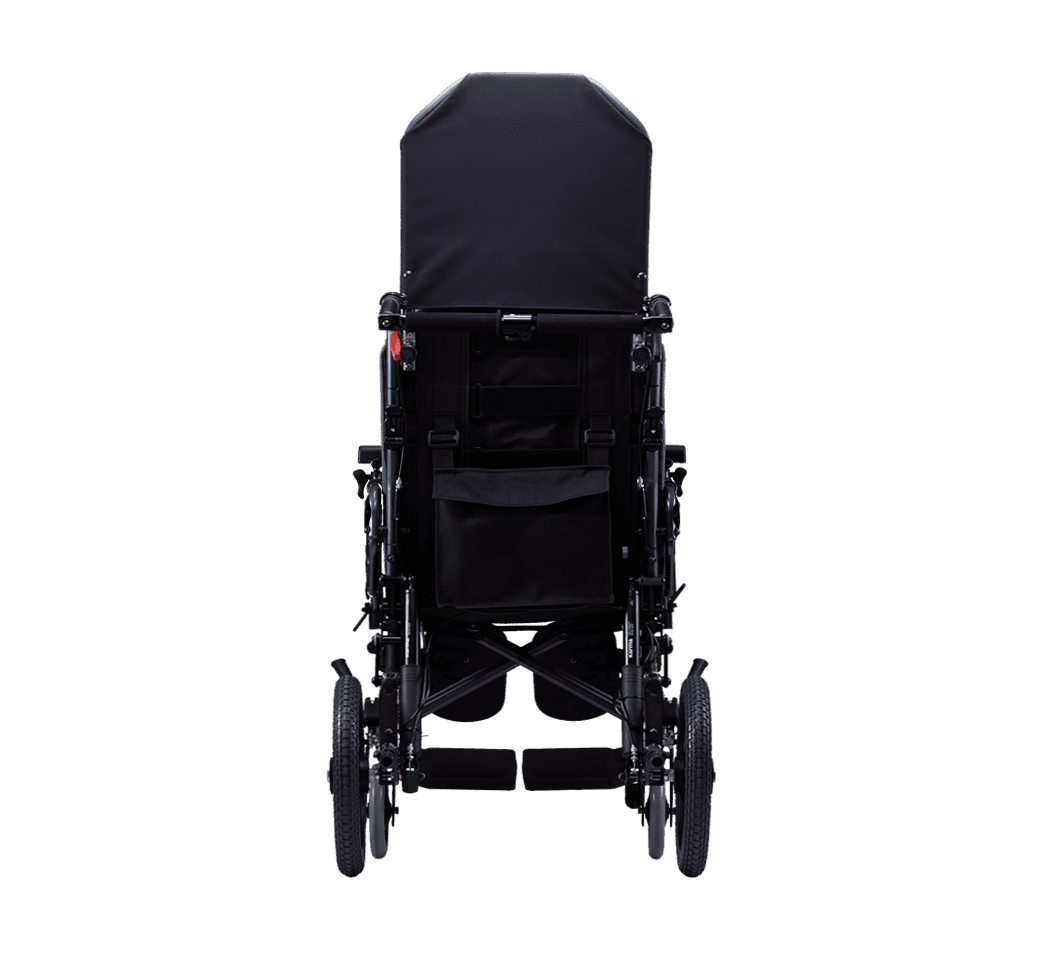

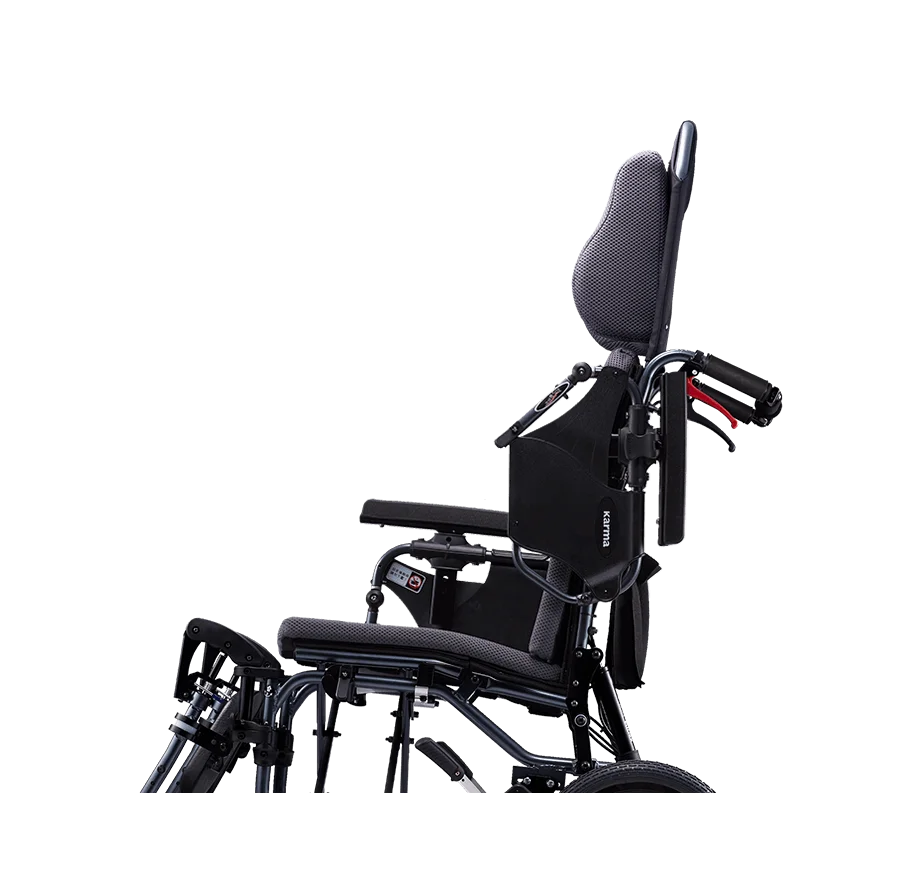

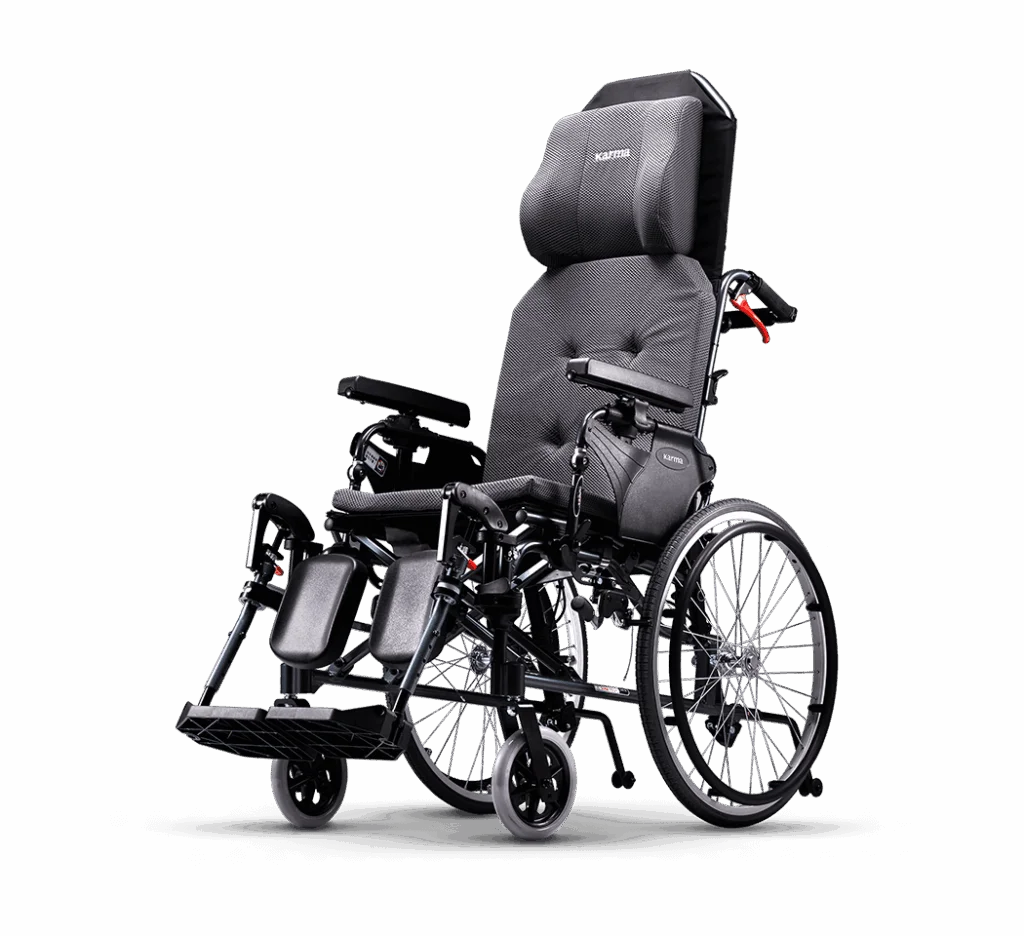

Product Model MVP 502 (KM-5000.2)
Nominal seat width (in) 151617181820
Nominal seat depth (in161616161818
Caster x Rear wheel size (in) 7 x 14
Maximum user weight (kg) 115
Overall length with legrest (mm) 119011901190119012251225
Overall width (mm) 550580610635635700
Overall height (mm) 840 / 1350 (with headrest)

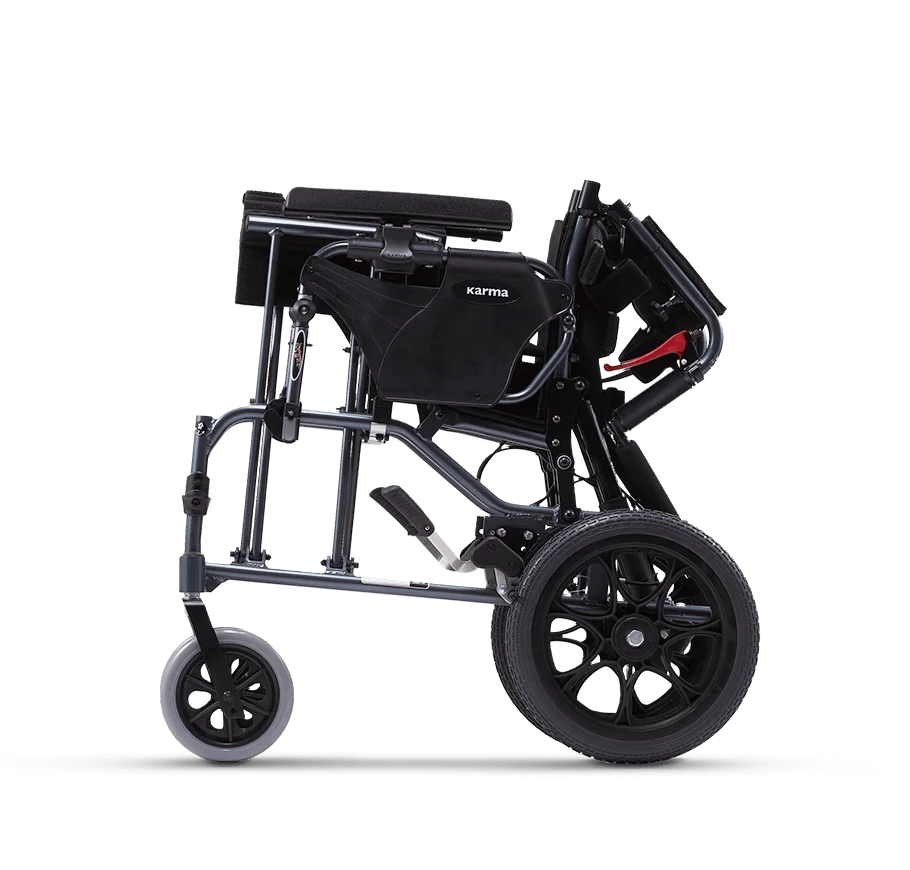

Folded length (mm) 785785785785825825
Folded width (mm) 305305305305305305
Folded height (mm) 770 770 770 770 770 770
Total mass (kg)20.320.420.520.820.9 21.0
Mass of the heaviest part (kg)
14.514.6 14.714.815.015.4
Handrim diameter(mm)N/AN/AN/AN/AN/AN/A
Horizontal location of axle (mm) 130130130130130130
Minimum turning radius (mm)102010251030 1040 1115 1125
Minimum turning radius
without user (mm)
95095596597510151025
Pivot width (mm) 132513301330133513701380
Static stability downhill (X°)N/A
Static stability uphill (X°) N/A
Static stability uphill with
anti-tippers (X°)
N/A
Static stability sideways (X°)N/A
Seat plane angle (X°) 7
Effective seat depth (mm) 400 400 400 400 450 450
Nominal seat depth (mm) 420 420 420 420 470 470
Effective seat width (mm)430450480505505555
Seat surface height at front edge (mm)
520 520 520 520 525525
Backrest angle (X°) 13 ~ 64
Seat to backrest angle (X°) 94 ~ 147
Backrest height (mm) 490490490490490490
Headrest height above seat (mm) 660 ~ 760660 ~ 760660 ~ 760
Leg to seat angle (X°) 100 ~ 160
Footrest to seat distance (mm) 410 ~ 485 410 ~ 485 410 ~ 485
Armrest to seat distance (mm) 260 ~ 335260 ~ 335260 ~ 335
Front location of armrest structure (mm)
340340340340340340

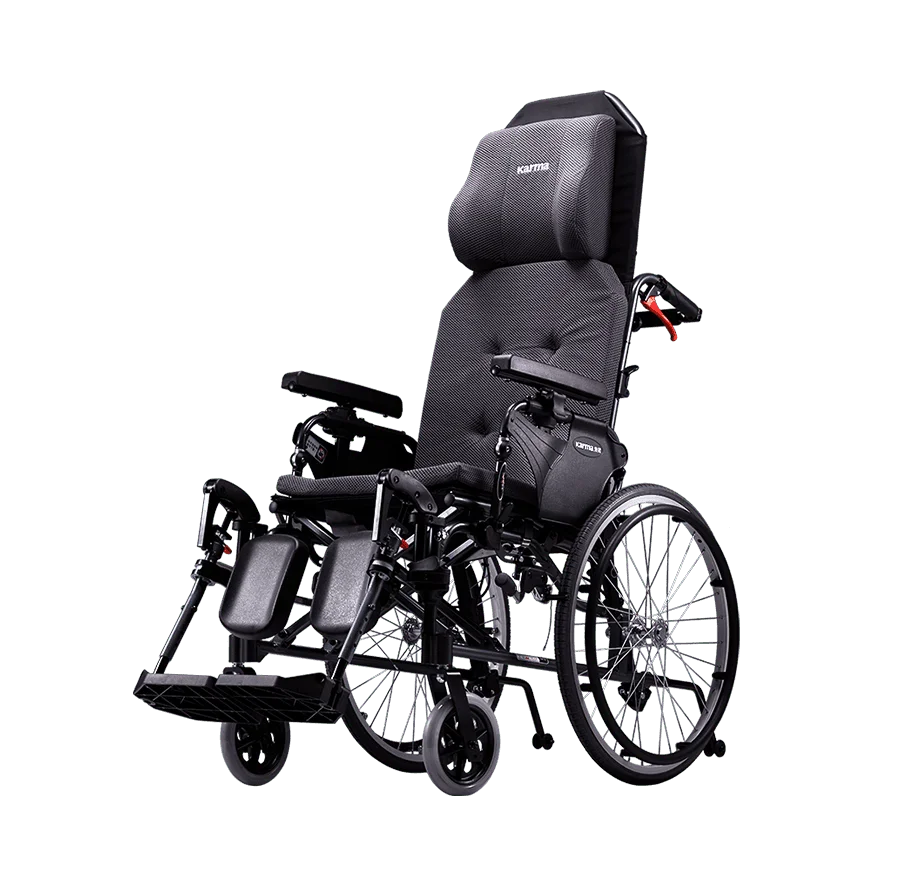

Product Model MVP 502 (KM-5000.2)
Nominal seat width (in) 151617181820
Nominal seat depth (in) 161616161818
Caster x Rear wheel size (in) 7 x 22
Maximum user weight (kg) 115
Overall length with legrest (mm) 119011901190119012251225
Overall width (mm) 580610640665665730
Overall height (mm) 840 / 1350 (with headrest)
Folded length (mm) 870870870870905905
Folded width (mm) 360360360360360360
Folded height (mm) 770 770 770 770 770 770
Total mass (kg)21.921.922.022.322.522.9
Mass of the heaviest part (kg)
16.816.816.917.017.217.6
Handrim diameter (mm) 480480480480480480
Horizontal location of axle (mm) 909090909090
Minimum turning radius (mm)93594094595010301040
Minimum turning radius
without user (mm)
860865875885 970980
Pivot width (mm) 1340134513451345 13901420
Static stability downhill (X°) 27
Static stability uphill (X°) 15
Static stability uphill with
anti-tippers (X°)
28
Static stability sideways (X°) 18
Seat plane angle (X°) 7
Effective seat depth (mm)400400400400450450
Nominal seat depth (mm) 420420420420470470
Effective seat width (mm)430450480505505555
Seat surface height at front edge (mm)
520 520 520 520 520 520
Backrest angle (X°) 13 ~ 64
Seat to backrest angle (X°) 94 ~ 147
Backrest height (mm) 490490490490490490
Headrest height above seat (mm) 660 ~ 760660 ~ 760660 ~ 760
Leg to seat angle (X°) 100 ~ 160
Footrest to seat distance (mm) 410 ~ 485410 ~ 485410 ~ 485
Armrest to seat distance (mm) 260 ~ 335260 ~ 335260 ~ 335
Front location of armrest structure
(mm)
340340340340340340
Manual ver.14

Remark :

* The actual product specifications differ from the data in the table by ±1 cm ±0.5 kg.
* The actual product specifications may vary according to different configurations.
* KARMAreserves the right to modify information herein without further notice.
