FLEXX TALL Adjustable Wheelchair with Plenty Combinations for Tall People

Flexx Tall

The Flexx Series is all about comfort, support, and performance. If you are an active user looking for a custom-made wheelchair, explore the many options that the Flexx Series has to offer and find the right combination to match you and your needs.

As the name implies, the Flexx Tall (KM-8022Tall / KM-8522Tall) is an upgraded version of the standard Flexx aluminum wheelchair, designed for tall people. It has extended seat depth for users with longer legs.

Product inquiry

Frame Colors

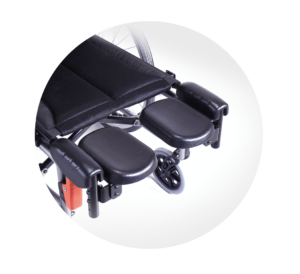

Optional Accessories

Biomechanical Elevating Legrest

Product Model	Flexx Tall (KM-8022 TL、KM-8522 TL)
Nominal seat width (mm)	395	420	445	470
Caster x Rear wheel size (in)	7 x 24Q / 8 x 24Q
Maximum user weight (kg)	130
Overall length with legrest (mm)	1130 ~ 1165
Overall width (mm)	605	630	655	680
Overall height (mm)	1000 ~ 1040
Folded length (mm)	955 ~ 1115
Folded width (mm)	340
Folded height (mm)	700 ~ 950
Total mass (kg)	17.5 ~ 18.1
Mass of the heaviest part (kg)	10.5 ~ 11.1
Handrim diameter (mm)	520
Horizontal location of axle (mm)	10
Minimum turning radius (mm)	965 ~ 995
Minimum turning radius without user (mm)	840 ~ 870
Pivot width (mm)	1220 ~ 1260
Static stability downhill (X°)	>16
Static stability uphill (X°)	11.8
Static stability uphill with anti-tippers (X°)	N/A
Static stability sideways (X°)	>16
Seat plane angle (X°)	5 ~ 8
Effective seat depth (mm)	665 / 690
Nominal seat depth (mm)	510 / 535
Effective seat width (mm)	430	455	480	505
Seat surface height at front edge (mm)	460 ~ 530
Backrest angle (X°)	11
Seat to backrest angle (X°)	96
Backrest height (mm)	430 / 510
Headrest height above seat (mm)	N/A
Leg to seat angle (X°)	98
Footrest to seat distance (mm)	330 ~ 430
Armrest to seat distance (mm)	205 ~ 285
Front location of armrest structure (mm)	355

Product Model	Flexx Tall (KM-8022 TL、KM-8522 TL)
Nominal seat width (mm)	395	420	445	470
Caster x Rear wheel size (in)	7 x 14Q / 8 x 14Q
Maximum user weight (kg)	130
Overall length with legrest (mm)	1130 ~ 1165
Overall width (mm)	645	670	695	720
Overall height (mm)	975 ~ 1000
Folded length (mm)	855 ~ 1115
Folded width (mm)	340
Folded height (mm)	700 ~ 950
Total mass (kg)	16.7 ~ 17.3
Mass of the heaviest part (kg)	10.5 ~ 11.1
Handrim diameter (mm)	N/A
Horizontal location of axle (mm)	70
Minimum turning radius (mm)	1025 ~ 1065
Minimum turning radius without user (mm)	900 ~ 930
Pivot width (mm)	1220 ~ 1260
Static stability downhill (X°)	>16
Static stability uphill (X°)	11.8
Static stability uphill with anti-tippers (X°)	N/A
Static stability sideways (X°)	>16
Seat plane angle (X°)	5 ~ 7
Effective seat depth (mm)	665 / 690
Nominal seat depth (mm)	510 / 535
Effective seat width (mm)	430	455	480	505
Seat surface height at front edge (mm)	460 ~ 530
Backrest angle (X°)	11
Seat to backrest angle (X°)	96
Backrest height (mm)	430 / 510
Headrest height above seat (mm)	N/A
Leg to seat angle (X°)	98
Footrest to seat distance (mm)	330 ~ 430
Armrest to seat distance (mm)	205 ~ 285
Front location of armrest structure (mm)	355

Manual ver.12

* The actual product specifications differ from the data in the table by ±1 cm ±0.5 kg.
* The actual product specifications may vary according to different configurations.
* Karma reserves the right to modify information herein without further notice.
