Casing Colors

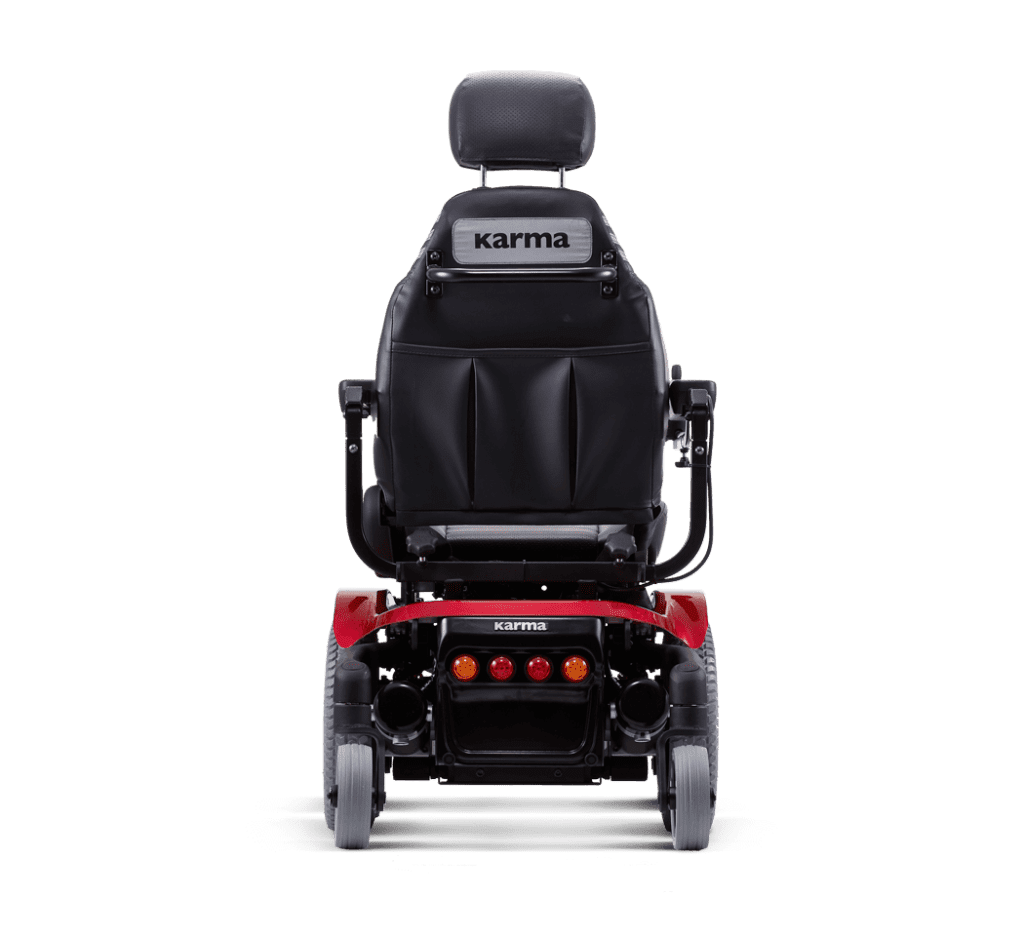

| Product Model | MORGAN Captain Seat(with pelvic belt) | |
| Nominal seat width (mm)* | 460 | 510 |
| Nominal seat depth (mm)** | 410 | 480 |
| Front Seat Height (mm) | 8 | |
| Drive wheel size (in) | 14 | |
| Rear caster size (in) | 6 | |
| Backrest height with cushion (mm) | 540 | |
| Armrest to seat distance with cushion (mm) | 200 ~ 290 | |
| Seat surface height at front edge with cushion (mm) | 535 | |
| Footrest to seat distance with cushion (mm) | 435 ~ 500 | |
| Effective seat width (mm) | 480 | 520 |
| Effective seat depth (mm) | 430 | 490 |
| Seat plane angle (X°) | 12 | 9 |
| Backrest angle (X°) | 0~65 | 0~45 |
| Overall length with legrest (mm) | 1200 | |
| Overall width (mm) | 600 | |
| Overall height (mm) | 1230 (with headrest) | |
| Total mass (kg) | 141 | |
| Total mass without batteries (kg) | 109 | |
| Maximum user weight (kg) | 136 | |
| Controller | VR2 | |
| Motor power (W) | 450 | |
| Battery capacity (Ah) | 50* 2 | |
| Charger output current (A) | 6/8 | |
| Drive range (km)*** | 25 | |
| Battery Compartment (L x W x H) (mm) | Front 238 x 170 x 215 Rear 238 x 170 x 190 |
|
| Maximum speed forward (km) | 6/10/12 | |
| Obstacle climbing (mm) | 50 | |
| Minimum turning radius (mm) | 935 | |
| Minimum turning radius without user (mm) | 785 | |
| Dynamic stability (X°) | 6 | |
| Ability to climb rated slope (X°)**** | 8 | |
Remark :
* Nominal seat width is known by measuring the width of seat cushion at 120 mm in front of the backrest. This value is mainly used in the
product ordering process.
** Nominal seat depth is measured from the front end of the seat cushion to the back cushion. This value is mainly used in the product
ordering process.
*** Drive range is estimated based on the following conditions: 20℃~35℃, 136 kg occupant, brand new fully charged batteries and driving on the flat road.
****Ability to climb rated slope is estimated based on the following conditions: 20℃~35℃, 136 kg occupant, brand new fully charged batteries.
– The actual product specifications differ from the data in the table by ±1 cm ±0.5 kg.
– The actual product specifications may vary according to different configurations.
– KARMA reserves the right to modify information herein without further notice.
