1. Know Your Range of Knee Motion

The range of knee motion is probably one of the most critical measurements in the legrest prescription process. Over-stretched legs are not only uncomfortable but can also lead to poor posture over time.

Reference article: The Fundamental Importance of Knee Range of Motion

Reference article: The Fundamental Importance of Knee Range of Motion

• Within Normal Limits (WNL): If knee flexion falls within normal limits, most legrest options should be suitable.
• Fixed Knee Contracture Over 90 Degrees: When knee angles are fixed at over 90 degrees, proper support usually requires specific alignment between seat depth and a customized legrest.
• Limited Knee Flexion or Fixed Knee Contracture: For users with limited knee flexion or fixed contractures, it’s important to choose a legrest that supports the exact angle needed.

1. 1. Tool-adjustable legrests and manual elevating legrests are the most commonly used options.
   2. Users with high muscle tone over the knees will benefit from tool-adjustable legrests, as these allow for a stable, fixed position.
   3. If different limitations exist in each knee, sperated legrests with an independent angle-adjusting function are often the better choice.

2. Consider Your Transfer Method

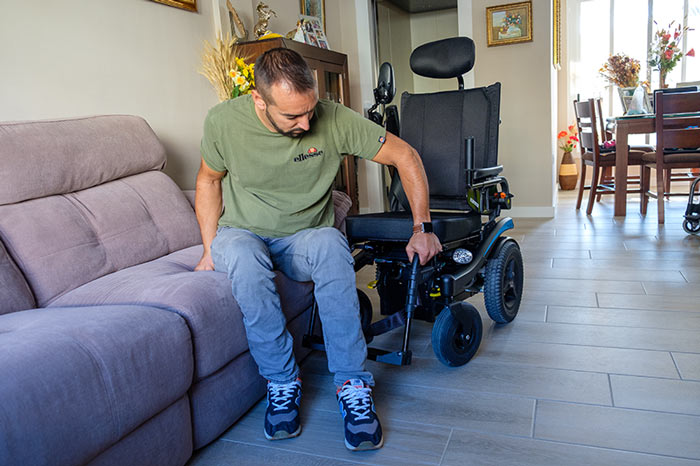

If you frequently transfer into and out of your wheelchair from its side, it’s essential to choose a legrest that won’t obstruct your movement. Central legrests provide clearance on both sides of the legs, which can be a game-changer for users with limited hand mobility to have smooth transfers.

For those who prefer transferring from the front of the wheelchair, swing away legrests can clear the leg space entirely. However, if a user lacks sufficient hand function to swing the legrest away, consider legrests that allow the footplate to lower to the ground. Paired with anterior tilt or low seat height, this setup enables users to step out of the wheelchair directly from the front.

3. Choose the Right Footplates

Don’t overlook the footplate design when selecting a legrest. Not all footplates are compatible with every legrest, so be sure to consult with your dealer or therapist to ensure the right match.

The central mount footboard is ideal for compact space or indoor if it can be positioned at an angle close to 90 degrees.

For users without any leg deformities, either a one-piece or two-piece footplate is suitable. However, if there is a leg length discrepancy, two-piece footplates are recommended to accommodate different footplate heights on each side.

Adjustable footplate is ideal for individuals with foot deformities, as it can be tilted forward and backward, and the lateral angle can also be adjusted.

Special mention should be made of Amputee Legrests, which typically feature shortened support and angle adjustability. Some models also provide lateral support to help keep the residual limb stable.

4. Think About Leg Elevation Needs

If you have a positioning wheelchair and you have no deformities in your lower extremities, consider whether manual or powered elevating legrests are better suited to your needs and abilities.

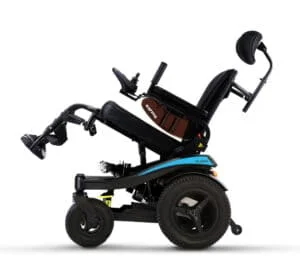

To enhance circulation in the lower limbs, a tilt-in-space wheelchair equipped with elevating legrests can be highly effective. The key principle is to position the legs higher than the head, which promotes better blood flow.

Pro Tip:  Biomechanical length compensation allows the legrest to adjust in length as the angle changes, reducing strain on the joints. It’s especially important for users who cannot reposition themselves in their wheelchair.

5. Consult Your Therapist for Special Positioning

For individuals with severe deformities in the pelvis, trunk, and lower extremities, a specialized positioning setup is necessary to ensure sitting stability, comfort, and driving efficiency. A therapist’s assessment plays a crucial role in selecting the most suitable legrests to support proper posture.

Conclusion

Choosing the right legrest for your wheelchair is essential for maximizing both comfort and functionality. By taking into account factors such as your range of knee motion, transfer methods, footplate design, leg elevation needs, and specific sitting posture, you can make an informed decision tailored to your individual requirements. If you have further questions about selecting legrests, consulting a qualified therapist and your dealer for professional guidance is key to making the right choice.

Tzuyu Lin, PT, Product Manager

Tzuyu Lin is a physiotherapist and Product Manager at KARMA headquarters. She began her career at the Rehabilitation Engineering Lab at National Taiwan University, focusing on exoskeleton studies, and later gained five years of physiotherapy experience at an orthopedics clinic.

Since joining KARMA in 2021 as a Product Specialist, Tzuyu has focused on custom adaptations and complex rehab technology. Now part of the product management team, she co-developed the KARMA Flexx Adapt wheelchair.

Keep Reading

Which Leg Rest Should You Choose?

How Do the Footplates Contribute to a Comfortable Sitting Position?

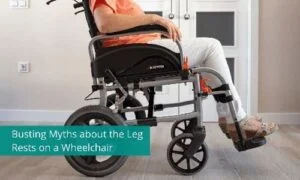

Busting Myths about the Leg Rests on a Wheelchair

If you frequently transfer into and out of your wheelchair from its side, it’s essential to choose a legrest that won’t obstruct your movement. Central legrests provide clearance on both sides of the legs, which can be a game-changer for users with limited hand mobility to have smooth transfers.

The 2024 REHACare successfully concluded on September 28th. We would like to extend our heartfelt gratitude to all our friends who attended the event. We sincerely appreciate your feedback, whether it’s regarding our products or services. It serves as a driving force for our continuous growth and improvement. We look forward to future collaborations as we strive to provide better mobility solutions.

2024 Rehacare Highlights!

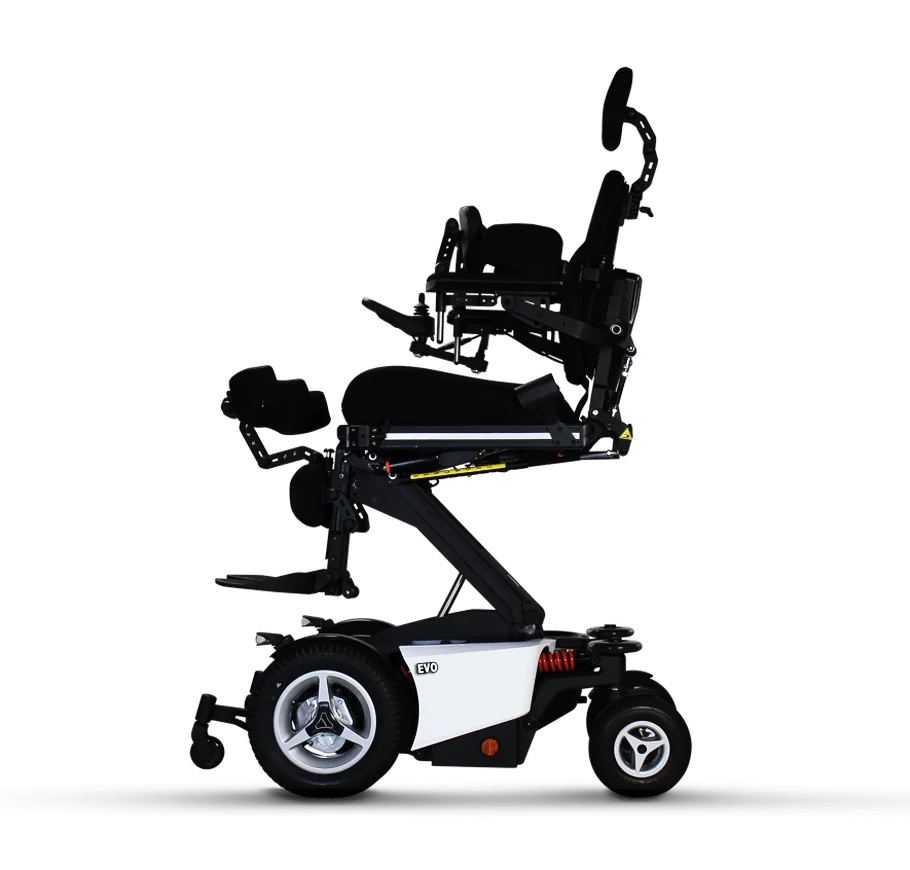

EVO Altus – MobilityCompact Enough for Any Elevator

Did you know the Evo Altus is the only high-end standing power wheelchair designed to fit effortlessly into compact residential elevators? With its intelligent lifting design, the Evo Altus shortens its length during elevation, making it perfect for navigating tight spaces with ease and style.

Know more

Morgan M Lectus – Premium mid-wheel drive
power wheelchair

Experience the pinnacle of comfort where advanced suspension seamlessly integrates with cutting-edge biomechanical design. The Morgan M Lectus stands as the premier model in the Morgan M series, delivering unparalleled driving performance alongside a comprehensive array of sophisticated rehabilitation options, thanks to its acclaimed Lectus seat.

Know more

Ergo 3 – The Next Generation of Lightweight Mobility

The latest Ergo member has finally arrived in the market! At the heart of this innovation lies the patented Ergo Back and lightweight technology. Discover the future of premium lightweight wheelchairs with the Ergo 3, where function and comfort converge in perfect harmony.

Know more

Ergo 3

Morgan M Lectus

EVO Altus

Morgan M Versus

Morgan M Sling

Leon R Versus

Leon R Sling

Blazer Sling

Leon F Kameleon

Flexx Adapt

Flexx Junior

Ergo Aqua

Ergo Lite 2

We are excited to invite you to visit our booth at REHACare 2024. This year, we are pleased to present the newest models in the Ergo and Morgan M family. Our exhibit will feature:

Ergo Lite 2 for plus-size users:

The options for this ultra-lightweight wheelchair have been expanded to include increased seat width, seat-to-floor height, and weight capacity. The latest Ergo Lite 2 frame is now crash-tested and ready to serve.

Ergo 3, Next Gen Lightweight Manual Wheelchair:

At the heart of this innovation lies the patented Ergo Back. Tailored support for the lumbar region ensures the spine’s natural alignment. Discover the future of seating with the Ergo 3, where function and well-being converge in perfect harmony.

Morgan M Lectus, Premium Power Wheelchair:

Combining the complex positioning capabilities of our top-line EVO series power wheelchairs with our high-performance Morgan M mid-wheel drive power base.

Come to our booth to find out more. We look forward to seeing you soon!

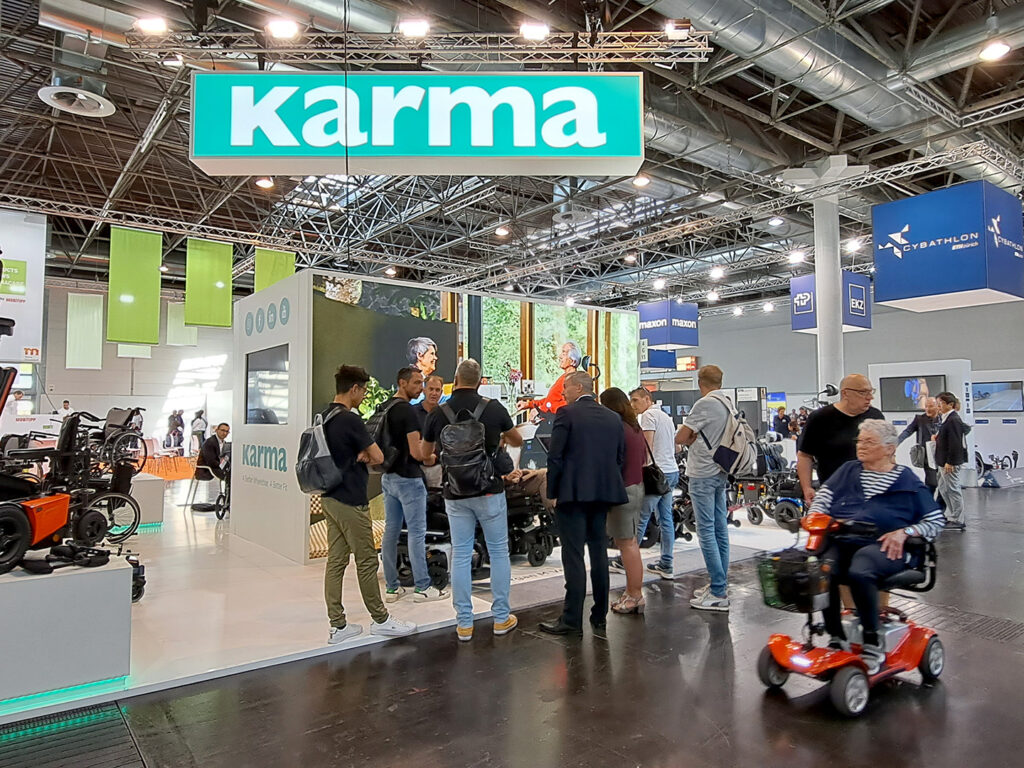

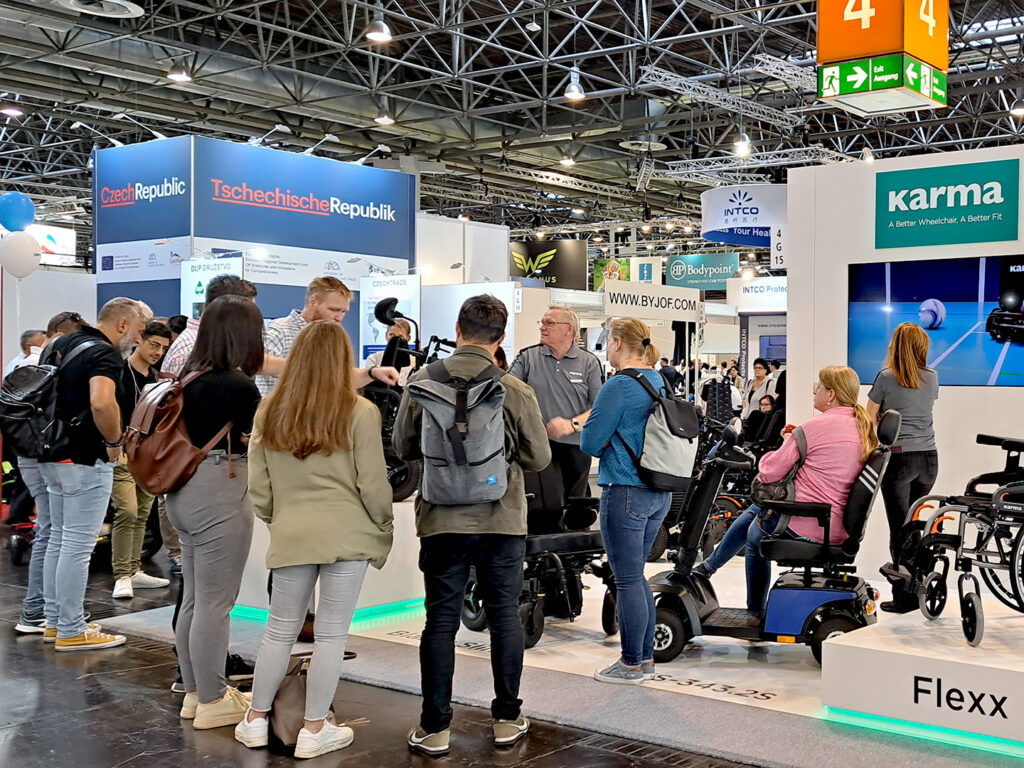

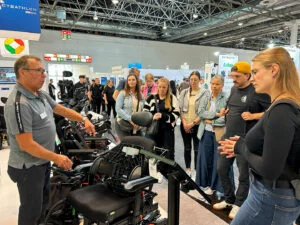

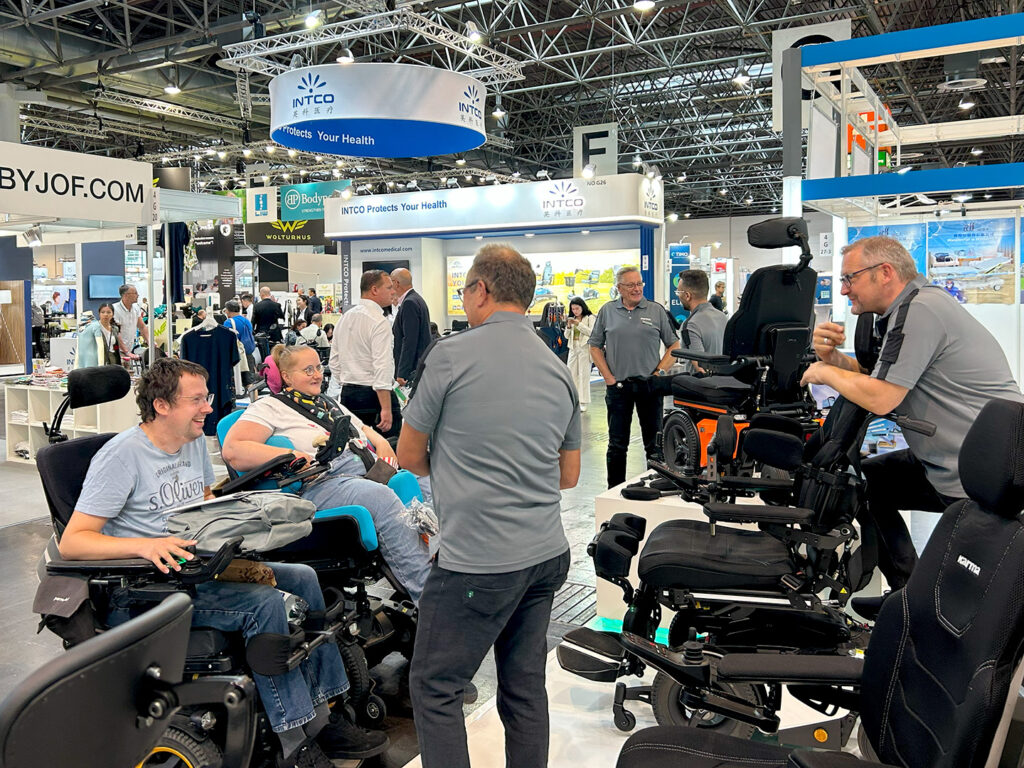

The 2023 REHACare successfully concluded on September 16th. We would like to extend our heartfelt gratitude to all our friends who attended the event. We sincerely appreciate your feedback, whether it’s regarding our products or services. It serves as a driving force for our continuous growth and improvement. We look forward to future collaborations as we strive to provide better mobility solutions.

Ergo 3 － Patent Ergo Back Design

A set of curved and adjustable Ergo Back Inserts provides direct lumbar support and maintains the spine’s natural alignment. It is the perfect solution for someone seeking a comfortable seating experience in a lightweight wheelchair.

Know more

Ergo Anti-tipper

Quick-Release AND Overcome Curb in ONE Single Step!

Know more

2023 Rehacare Highlights!

Ergo 3

Leon R Versus

Leon F Versus

Morgan M Versus

Flexx Adapt

EVO Lectus LR

SOMA 215 TL

SOMA 215

KARMA Medical firmly believes in the concept of “Fit”; that is, to find the perfect mobility aid, one must consider the user’s body shape, medical needs, lifestyle, and budget search for the sweet balance of these four key elements to achieve an improved quality of life.

Flexx Adapt was designed under that philosophy. In the early stage of the research and development of Flexx Adapt, hundreds of therapists were involved in giving their opinions and advice. Through that process, a new standard for pediatric positioning products was created, with the fully adjustable and configurable seating system ensuring a comfortable and supportive fit throughout childhood.

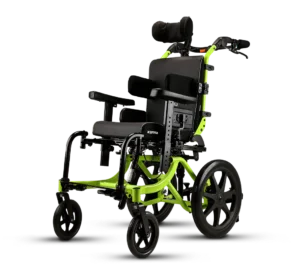

Flexx Adapt
