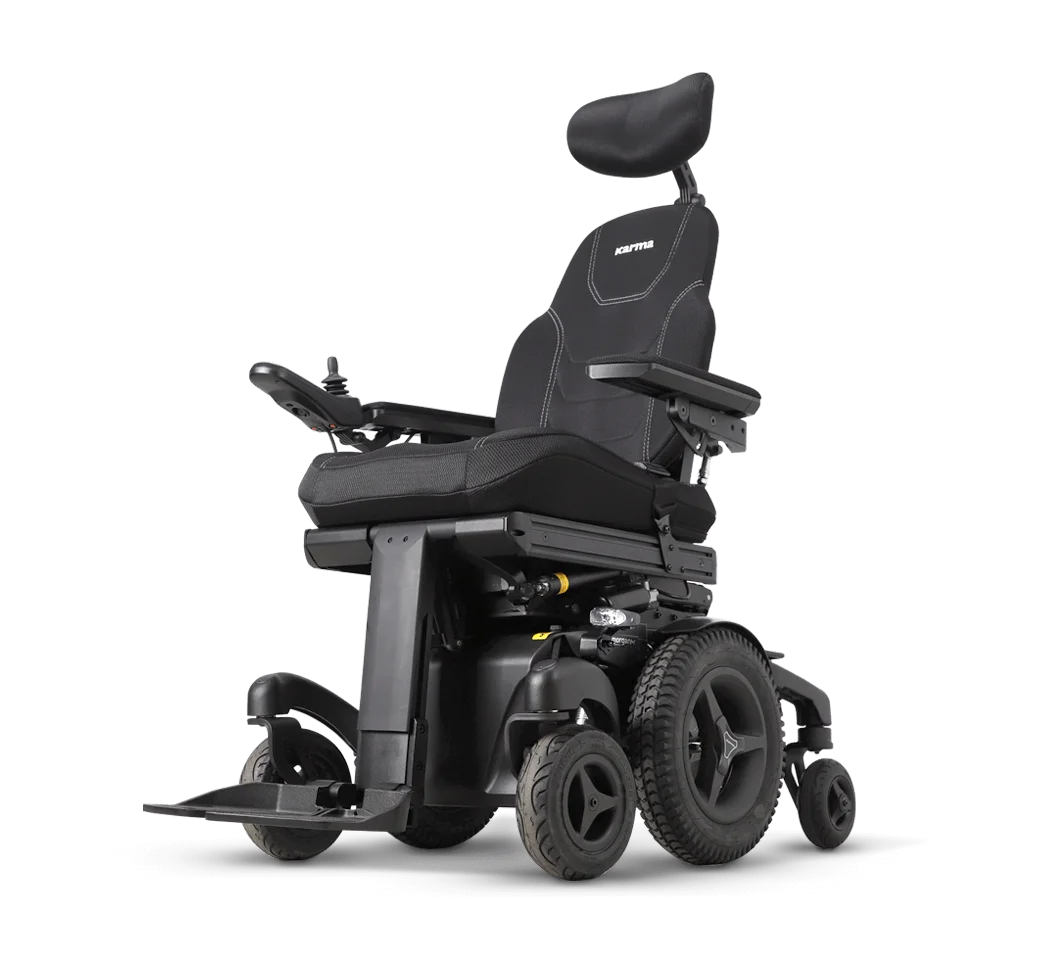

Where advanced suspension meets biomechanical design, comfort is guaranteed. The Morgan M Lectus is the top-tier model in the Morgan M family, offering unmatched driving performance and the access to a complete range of complex rehab options through its award-winning Lectus seat.
Chassis
| Product Model | MGNM-LTS | |
Seating System| Minimum | Maximum |
|
| Nominal seat width (mm)* with Lectus cushion | 420 / 470 / 520 | |
| Nominal seat depth (mm)** with Lectus cushion | 425 – 600 | |
| Backrest height without cushion (mm) | 658 | 688 |
| Backrest height with cushion (mm) | 570 | 600 |

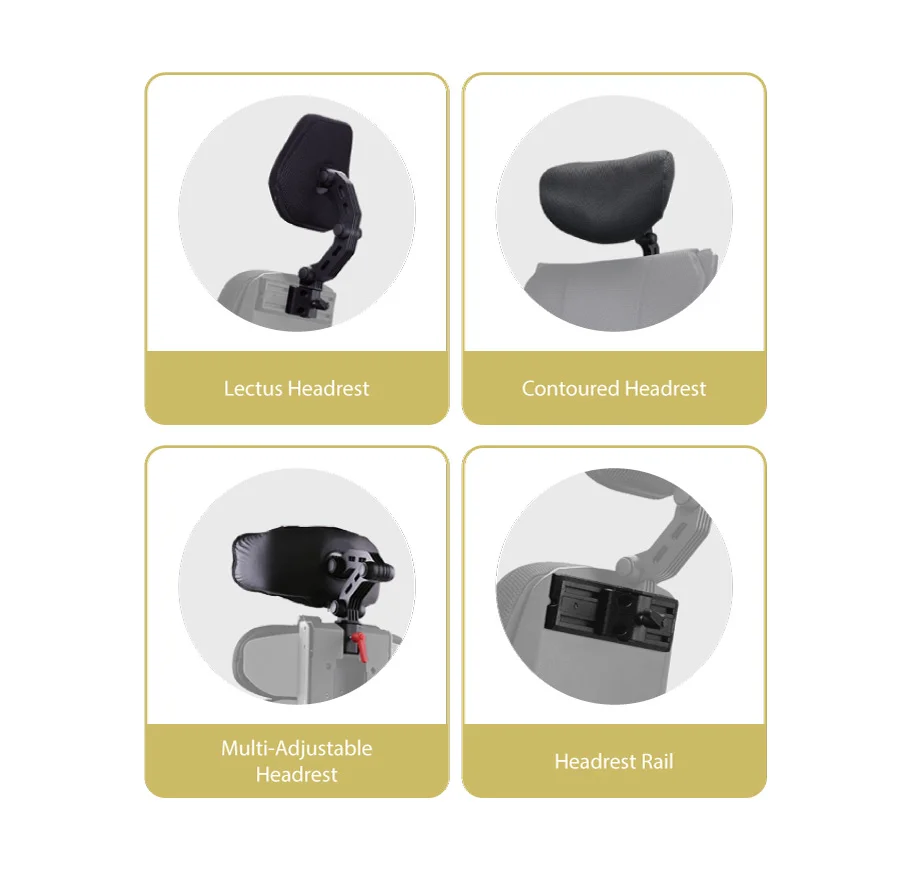

| Headrest height above seat without cushion (mm) | 870 | 1000 |
| Headrest height above seat with cushion (mm) | 790 | 920 |
| Armrest to seat distance without cushion (mm) | 240 | 360 |
| Armrest to seat distance with cushion (mm) | 150 | 270 |
| Front location of armrest structure without cushion (mm) | 0 | 460 |
| Front location of armrest structure with cushion (mm) | 0 | 420 |
| Seat surface height at front edge without cushion (mm) | 485 | 785 |
| Seat surface height at front edge with cushion (mm) | 590 | 890 |
| Footrest to seat distance without cushion (mm) | 300 | 595 |
| Footrest to seat distance with cushion (mm) | 405 | 595 |
| Effective seat width (mm) | 420 | 520 |
| Effective seat depth (mm) | 425 | 600 |
| Seat plane angle (X°) (power tilt) | 3 | 48 |
| Backrest angle (X°) | -4° | 93° |
| Seat to backrest angle (X°) (without cushion) | 93° | 180° |
| Seat to backrest angle (X°) (with cushion) | 80° | 177° |
| Leg to seat angle (X°) | 98° | 173° |
| Driving Characteristics | Minimum | Maximum |
| Front caster size | 2.50/2.00 -4 (8") | |
| Drive wheel size | 3.00 -8 (14") | |
| Rear caster size | 2.00/1.00 -4 (6") | |
| Overall length with legrest (mm) | 1240 | 2120 |
| Overall width (mm) | 620 | 700 |
| Overall height (mm) | 1180 | 1480 |
| Folded length (mm) | 890 | - |
| Folded width (mm) | 620 | 700 |
| Folded height (mm) | 1115 | - |
| Total mass (kg) | - | 209 |
| Total mass without batteries (kg) | 155 | |
| Mass of the heaviest part (kg) | 152 | |
| Maximum user weight (kg) | 136 | |
| Drive range (km)³ | 33 | |
| Maximum speed forward (km/h) | 6 / 10 / 12 | |
| Minimum braking distance from max speed (mm) | 2900 | - |
| Obstacle climbing (mm) | 75 | |
| Ground clearance (mm) | 80 | - |
| Minimum turning radius (mm) | 895 | - |
| Minimum turning radius without user (mm) | 835 | - |
| Reversing width (mm) | 1240 | - |
| Static stability downhill (X°) | 15° | |
| Static stability uphill (X°) | 11° | |
| Static stability sideways (X°) | 15° | |
| Dynamic stability uphill (X°) | 6° | |
| Ability to climb rated slope (X°)⁴ | 12° | |
| Electrical System | ||
| Controller | R-net | |
| Motor power (W) | AMT, 4-pole, 350 W | |
| Battery capacity (Ah) | 80 x 2 / 50 x 2 (optional) | |
| Charger output current (A) | 8 | |
| Battery Compartment (L x W x H) (mm) | (Front) 238 x 170 x 215 mm (Rear) 238 x 170 x 190 mm |
|
Remark :
* Nominal seat width is measured the width of seat cushion at 120 mm in front of the backrest. This value is mainly used in the product ordering process.
** Nominal seat depth is measured from the front end of the seat cushion to the back cushion. This value is mainly used in the product ordering process.
*** Drive range is estimated based on the following conditions: 20℃~35℃, 136 kg occupant,
and brand new fully charged batteries and driving on the flat road.
**** Ability to climb rated slope is estimated based on the following conditions: 20℃~35℃, 136 kg occupant, and brand new fully charged batteries.
– The actual product specifications differ from the data in the table by ±10 cm ±0.5 kg.
– The actual product specifications may vary according to different configurations.
– KARMA reserves the right to modify information herein without further notice.
Morgan M Lectus is approved for transportation in accordance with ISO 7176-19. This means it is suitable to be used as a seat in a motor vehicle for transportation.
